Automatic Gluing Machine For LED Power Supply 1600mm Length Ratio From 1 1 To 10 1
  • name
  • name
  • name
  • name
  • name
  • name

Automatic Gluing Machine For LED Power Supply 1600mm Length Ratio From 1 1 To 10 1

Details Information
Product Description
Detail Information
Model NO.:
PJL-1500
Flow Speed:
66g5s, Customizable
Pump:
Patent Double Cylinder Plunger Pump
Transport Package:
Wooden Carton Lined With Foaming PE
Specification:
CE & SGS
Trademark:
Daheng / OEM
Origin:
Guangzhou China
HS Code:
842489990
Supply Ability:
50PCS / Month
Certification:
CE
Automatic Grade:
Semiautomatic
Size:
1100mm×800 Mm×1600mm
N.W:
310kg
Glues Used:
Double Components PU Silicone Eposy Etc.
Ratio:
From 1:1 To 10:1
Customization:
Available | Customized Request
Highlight:

automatic glue mixing machine

,

1600mm glue mixing machine

,

1600mm automatic gluing machine

Product Description

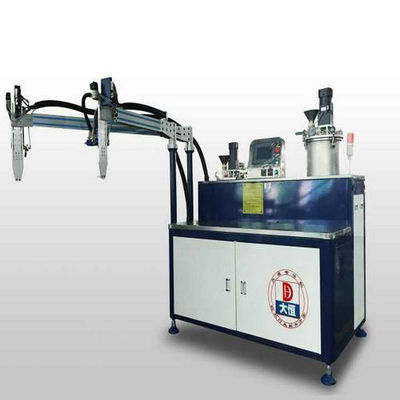

Automatic Gluing Machine for LED Power Supply
Automatic Gluing Machine for LED Power Supply

Features & Benefits:
1. Sealing & Vacuum System
2. An automatic systerm of metering and mixing.
3. Self-refilling
4. Self-cleaning
5. Easy to change the flow speed, ratio on the touch screen.
6. Easy to operate, assembly and disassembly.
7. Our Patent double cylinder plunger pump; specially designed for high precision, wearability and long life time

Application:
PLJ-1000 can be applied in electronical & electroniccs where glue dispensing, mixing is demanded for sealing, filling, gluing such as: power supply, driver, transformer, controller, motor, circuit, PVB board so on and so mass

Automatic Gluing Machine for LED Power Supply
.

Glues Ratio From 1:1 to 10:1, optional
Out-gluing Speed 1-25g/s(influenced by glues ratio)
Ratio Accuracy ±1%
Data Memory 20
Air Pressure Input 0.4MPa_0.8MPa
Glue Viscosity 50cps~6000cps
Mode Manual / Automatic
Metering & Mixing PLC/ Double-Cylinder Plunger Pump (DH Patent)
Out-gluing Quantity Digit Display, manual set
Program Method Teaching mode
Center Control Touch Screen
Control System for Out-gluing Such-back Double-liquid Valve
Mixing Method Dynamic Mixing
Tank Stainless Steel Tanks; A: 30L, customizable; B: 10L
Power Input 220V/50Hz/1200W
Size                1100mm×800 mm×1600mm
Tags:

automatic glue mixing machine,

automatic ab glue machine,

custom glue mixing machine
