CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing
  • name
  • name
  • name
  • name
  • name
  • name

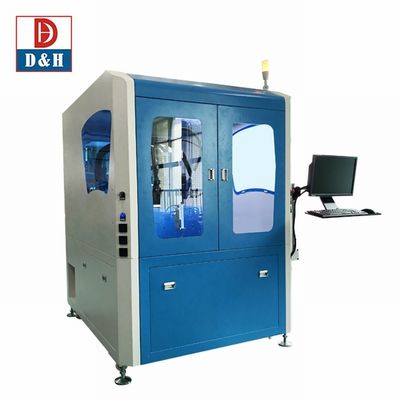

CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing

Price: $20,000.00/pieces 1-1 pieces
Standard Packaging: According to the customer requirement
Supply Capacity: 50 Piece/Pieces per Month MOQ=1PCS
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Daheng
Type:
Gluing Machine
Applicable Industries:
Manufacturing Plant
Showroom Location:
Turkey, Italy, Viet Nam, Russia, Malaysia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Pump
Condition:
New
Application:
Two-component Material Such Like PU, Epoxy , Silicone
Packaging Type:
POLYWOOD CASE
Packaging Material:
Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
230V,380V ,customized
Dimension(L*W*H):
1928x1650x1851
Weight:
600 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Name:
CCD AB Component Glue Dispensing Metering Machine
Working Area:
600x400x100mm
Control Mode:
PLC
Feeding Way:
Vacuum Feeding
Tank Capacity:
10L,25L,40L
Highlight:

visual ab potting machine

,

ccd ab potting machine

,

ccd ab potting machines

Product Description
Product Overview



CCD 2-component AB dispensing and metering machine
PGV-501 glue potting machines are the fully automatic glue potting machine launched by Daheng automation. This machine is aiming at epoxy resin , polyurethane, silicone and other two-component materials for materials mixing and automatic perfusion.

Machine introduction :

Ultra - high precision double cylinder plunger pump, glue stable and easy to use. Daheng core patent plunger pump
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.

CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 0
Front elevation
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 1
Left elevation
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 2
Side elevation
Successful Project
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 3
Applications:
Metering & mixing & dispensing two-component adhesive like PU, epoxy , silicone into driver cases, display module, transformers,ignition coils, motor, power supply and other electronic components which need to be dispensed materials , other products where want to apply fluids and so on….
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 4
Projects in oversea market
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 5
Factory Show
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 6
Sample customers
Glue mixing ratio
100:100—100:10 Optional
Working area
600(X)*600(Y)*100mm(Z)(effective:400mm(X))
Working path
Dot, line , arc , circle
Positioning method
CCD Visual capture positioning
Vision system
Visual capture and positioning system software
Motor
Servo motor (Japan), lead screw + slider (Taiwan brand)
Production line function
Optional matching function of production line (customized production line according to customers' products)
Speed
500mm/s(displacement speed)1-12ml/s(Single pump glue rate)
Accuracy
±0.03mm (repeatability)±2%(potting)±2%(mixing)
Glue discharge
Automatic origin/fixed point glue discharge
safety
Front door/safety grating
Program memory
99pcs
Input air pressure
0.5MPa—0.7MPa
Viscosity
50cps~Paste
Operation mode
Manual /Automatic
Ratio
PLC/ plunger pump/gear pump/screw pump
Flow
Digital input
Teaching mode
Teaching programming
automatic control system
PC,Touch screen (realize program programming, modification, storage, etc
Out-glue control system
AB glue suction valve, realize AB glue independent operation
Mixing mode
Dynamic and static optional, instant mixing, convenient cleaning
Tank
Stainless Steel(40L),(25L),(10L)optional
Power supply
220V/50Hz/1.5kW(without heater)
Dimension
1900mm×1650 mm×2100mm
Line body height
850-950(Can be customized)
Line body width
Max 550mm(Vision 400mm)(can be customized)
The conveyor line body
Belt/double chain / roller
Line body load
As per production
Positioning
clamping position
Blocking cylinder
3 pcs (default)
PRODUCT CONFIGURATION
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 7
CHANGCHAI high power engine
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 8
Imported EATON control valve
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 9
Japan Shimadzu hydraulic motor
SIMILAR PRODUCTS
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 10
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 11
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 12
FAQ
Question that will help to make a right dispensing solution .

1. Glue data-sheet . (e.g. single or two components, brand , model , viscosity , single component , dual component )
2. Each dispensing volume , how many gram for each product .
3. The sizes of potting area
4. Capacity (Hourly , daily ?)
5. What kind of your product ?
6. What type of machine you prefer to use ?(desktop , stand-alone , inline machine or XYZ robot)
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 13
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 14
Company Culture
Management concept: Success comes from details, innovation improves the future. Patented technology: Duplex plunger pump, precision AB double liquid valve. Main Products:Glue Pouring Machine,Glue mixing machine,Glue dispenser machine Application industry: Lighting components, electronic appliances, automobiles, photo album, arts and crafts, etc. Customer service: sales network all over the country, comprehensive pre-market & after-sales service. Win-win cooperation: all different kinds of sales channels, the mechanism of comprehensive partnership.
SALES AND SERVICE NETWORK
CCD Visual AB Potting Machine For Electric Driven 600KG Component Glue Dispensing 15
