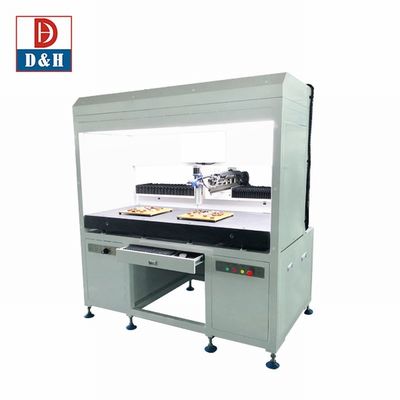

Visual AB Potting Machine CCD For Epoxy Glue Dispensing Metering

Price:	$20,000.00/pieces 1-1 pieces
Standard Packaging:	According to the customer requirement
Supply Capacity:	50 Piece/Pieces per Month MOQ=1PCS

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Daheng

Type:

Gluing Machine

Applicable Industries:

Manufacturing Plant

Showroom Location:

Turkey, Italy, Viet Nam, Russia, Malaysia

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty Of Core Components:

1 Year

Core Components:

PLC, Pump

Condition:

New

Application:

Two-component Material Such Like PU, Epoxy , Silicone

Packaging Type:

POLYWOOD CASE

Packaging Material:

Plastic, Wood

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

230V,380V ,customized

Dimension(L*W*H):

1928x1650x1851

Weight:

600 KG

Warranty:

1 Year

Key Selling Points:

High-accuracy

Name:

CCD AB Component Glue Dispensing Metering Machine

Working Area:

600x400x100mm

Control Mode:

PLC

Feeding Way:

Vacuum Feeding

Tank Capacity:

10L,25L,40L

Marketing Type:

Ordinary Product

Port:

Guangzhou

Highlight:

visual ab potting machine

ab potting machine ccd

visual ab potting machines

Product Description

Product Overview

CCD 2-component AB dispensing and metering machine

PGV-501 glue potting machines are the fully automatic glue potting machine launched by Daheng automation. This machine is aiming at epoxy resin , polyurethane, silicone and other two-component materials for materials mixing and automatic perfusion.

Machine introduction :

Ultra - high precision double cylinder plunger pump, glue stable and easy to use. Daheng core patent plunger pump
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.

Successful Project

Applications:

Metering & mixing & dispensing two-component adhesive like PU, epoxy , silicone into driver cases, display module, transformers,ignition coils, motor, power supply and other electronic components which need to be dispensed materials , other products where want to apply fluids and so on….

Projects in oversea market

Factory Show

Sample customers

Glue mixing ratio	100:100—100:10 Optional
Working area	600(X)600(Y)100mm(Z)(effective:400mm(X))
Working path	Dot, line , arc , circle
Positioning method	CCD Visual capture positioning
Vision system	Visual capture and positioning system software
Motor	Servo motor (Japan), lead screw + slider (Taiwan brand)
Production line function	Optional matching function of production line (customized production line according to customers' products)
Speed	500mm/s(displacement speed)1-12ml/s(Single pump glue rate)
Accuracy	±0.03mm (repeatability)±2%(potting)±2%(mixing)
Glue discharge	Automatic origin/fixed point glue discharge
safety	Front door/safety grating
Program memory	99pcs
Input air pressure	0.5MPa—0.7MPa
Viscosity	50cps~Paste
Operation mode	Manual /Automatic
Ratio	PLC/ plunger pump/gear pump/screw pump
Flow	Digital input
Teaching mode	Teaching programming
automatic control system	PC,Touch screen (realize program programming, modification, storage, etc
Out-glue control system	AB glue suction valve, realize AB glue independent operation
Mixing mode	Dynamic and static optional, instant mixing, convenient cleaning
Tank	Stainless Steel(40L),(25L),(10L)optional
Power supply	220V/50Hz/1.5kW(without heater)
Dimension	1900mm×1650 mm×2100mm
Line body height	850-950(Can be customized)
Line body width	Max 550mm(Vision 400mm)(can be customized)
The conveyor line body	Belt/double chain / roller
Line body load	As per production
Positioning	clamping position
Blocking cylinder	3 pcs (default)

PRODUCT CONFIGURATION

CHANGCHAI high power engine

Imported EATON control valve

Japan Shimadzu hydraulic motor

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q:Do you offer oversea service? A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q:How dose your factory do regarding quality control? A:We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q:What are your payment terms? A:Normally, 30% advance by T/T and balance paid off before delivery.
Q:Are you a factory or trading company ? A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
