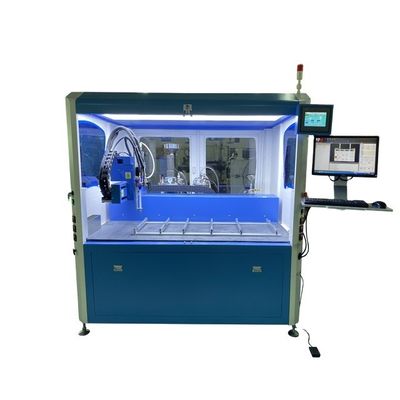

Vacuum Feeding CCD Vision Dispensing System For 2 Components Epoxy Silicones Polyurethane

Products

Vacuum Potting Casting Machine

High Precision Dispensing Valve

PU Dispensing Machine

Ms. Tina Peng

dh04@dahengkongjiao.com

86--18926136909

8613302264665

Contact Now

Vacuum Feeding CCD Vision Dispensing System For 2 Components Epoxy Silicones Polyurethane

Price:	$20,000.00/pieces 1-1 pieces

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Daheng

Type:

Gluing Machine

Applicable Industries:

Manufacturing Plant

Showroom Location:

Turkey, Italy, Viet Nam, Russia, Malaysia

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty Of Core Components:

1 Year

Core Components:

PLC, Pump

Condition:

New

Application:

Two-component Material Such Like PU, Epoxy , Silicone

Packaging Type:

POLYWOOD CASE

Packaging Material:

Plastic, Wood

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

230V,380V ,customized

Dimension(L*W*H):

1928x1650x1851

Weight:

600 KG

Warranty:

1 Year

Key Selling Points:

High-accuracy

Name:

CCD AB Component Glue Dispensing Metering Machine

Working Area:

800x700x100mm

Control Mode:

PLC

Feeding Way:

Vacuum Feeding

Tank Capacity:

10L,25L,40L

Highlight:

vacuum feeding ccd vision dispensing system

vacuum epoxy dispensing machine

vacuum ccd vision dispensing system

Product Description

Product Overview

CCD 2-component AB dispensing and metering machine

PGV-502 glue potting machines are the fully automatic glue potting machine launched by Daheng automation. This machine is aiming at epoxy resin , polyurethane, silicone and other two-component materials for materials mixing and automatic perfusion.

Machine introduction :

Ultra - high precision double cylinder plunger pump, glue stable and easy to use. Daheng core patent plunger pump
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.

Front elevation

Left elevation

Side elevation

Successful Project

Applications:

Metering & mixing & dispensing two-component adhesive like PU, epoxy , silicone into driver cases, display module, transformers,ignition coils, motor, power supply and other electronic components which need to be dispensed materials , other products where want to apply fluids and so on….

Projects in oversea market

Factory Show

Sample customers

Glue mixing ratio	100:100—100:10 Optional
Working area	600(X)600(Y)100mm(Z)(effective:400mm(X))
Working path	Dot, line , arc , circle
Positioning method	CCD Visual capture positioning
Vision system	Visual capture and positioning system software
Motor	Servo motor (Japan), lead screw + slider (Taiwan brand)
Production line function	Optional matching function of production line (customized production line according to customers' products)
Speed	500mm/s(displacement speed)1-12ml/s(Single pump glue rate)
Accuracy	±0.03mm (repeatability)±2%(potting)±2%(mixing)
Glue discharge	Automatic origin/fixed point glue discharge
safety	Front door/safety grating
Program memory	99pcs
Input air pressure	0.5MPa—0.7MPa
Viscosity	50cps~Paste
Operation mode	Manual /Automatic
Ratio	PLC/ plunger pump/gear pump/screw pump
Flow	Digital input
Teaching mode	Teaching programming
automatic control system	PC,Touch screen (realize program programming, modification, storage, etc
Out-glue control system	AB glue suction valve, realize AB glue independent operation
Mixing mode	Dynamic and static optional, instant mixing, convenient cleaning
Tank	Stainless Steel(40L),(25L),(10L)optional
Power supply	220V/50Hz/1.5kW(without heater)
Dimension	1900mm×1650 mm×2100mm
Line body height	850-950(Can be customized)
Line body width	Max 550mm(Vision 400mm)(can be customized)
The conveyor line body	Belt/double chain / roller
Line body load	As per production
Positioning	clamping position
Blocking cylinder	3 pcs (default)

PRODUCT CONFIGURATION

CHANGCHAI high power engine

Imported EATON control valve

Japan Shimadzu hydraulic motor
