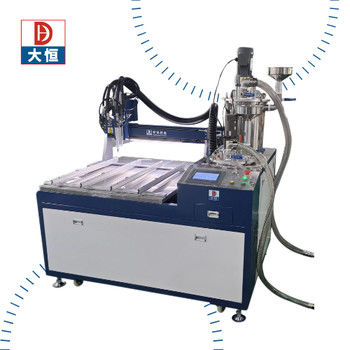

LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine
  • name

LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine

MOQ: 1
Price: 12800
Standard Packaging: standard wood case
Delivery Period: 10 BUSINESS DAYS
Payment Method: L/C, D/A, D/P, T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
D&H
Certification
ce
Model Number
pg-700
Highlight:

LED Display Module Glue Potting Machine

,

Two Component Silicone Glue Potting Machine

,

Silicone Mixing Potting Dispensing Gluing Machine

Product Description
Why Choose Us



PGB-700 2 part silicone molding machine
Potting is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .
Product Description
LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine 0
General description of the machine
PGB-1200 ab dosing dispensing machine precisely metering, mixing and dispensing two-component medium to low-viscosity materials for potting, dispensing ,sealing, casting and filling.
For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
The system is composed of AB tanks, metering pumps and motor, mixing pipe, dual valve, dynamic motor for dynamic stirring and 3-axis robotic platform.
Two kinds of component materials are separately before they mix in mixing tube to avoid glue cure in system. Dispensing valve is with suck-back function to keep thin fluid from dripping.

Introduction :
1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Tank system technology:
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand . 8 Tank with silica-dryer which can prevent material especially PU from crystallization .
LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine 1



D&H Pump technology

1. Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitablefor high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine 2



Valve technology


1. Dynamic mixing with stirring detecting function that ensure glue mixing evenly .
2 Stainless design of the glue touch surface to capture more higher material compatibility .
3 Glue valve with flow-back prevent function that can prevent glue from dropping when stop gluing .
4 Sealing parts of rod shaft adopt imported parts to keep more higher durability .
5 The self-cleaning function make machine cleaning more easier that you needn’t dis-assembly the parts to wash . Cleaning time and cleaning times could be set in the touch screen.

LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine 3


Specification
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
700*700*100mm
Displacement speed
250MM/S
Out-glue speed
1-12g/s per single pump
Accuracy
±2%(output volume)±2%(mixing)
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99-999PCS
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W without heating
Air source
0.5-0.8Mpa
Viscosity range
50-50000cps
Outer dimension
1500L*1200W*1600H mm
A tank
10L 25L 40L stainless tank(optional)
B tank
10L 25L 40L stainless tank(optional)
Others
AB tank ,A pump,AB pipeline heating function
PLC Operation Controlling System



1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .
2 Machine with
detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation ..
Application
LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine 4

1.Potting &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reversesensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling....
3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts ,photo frame , and other arts graphics....
Applicable Materials
LED Display Module Two Component Silicone Mixing Potting Dispensing Gluing Machine 5

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU,Ployerster, Polyurethane, UV materials and so on .
Service Term
1, Staff training
Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured
customer can totally use the operation skills and well acknowledge maintenance of machine .
2,Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software
upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part
replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
