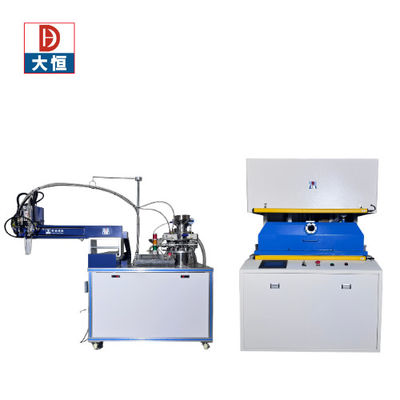

Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine
  • name

Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine

MOQ: 1
Price: 12800
Standard Packaging: standard wood case
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000pcs per year
Details Information
Product Description
Detail Information
Place of Origin
china
Brand Name
D&H
Certification
ce
Model Number
PGB-650S
Highlight:

Vacuum automatic glue dispensing machine

,

2 Part automatic glue dispensing machine

,

Vacuum 2 Part automatic glue dispenser

Product Description

Vacuum Gluing Production Line Automatic Glue Dispensing Machinery 2 Part Glue Potting Machine Glue Dispenser Machine

Product Overview



Vacuum Gluing Production Line Automatic Glue Dispensing Machinery 2 Part Glue Potting Machine Glue Dispenser Machine
I Machine demand description
Potting, sensors, CPUs, etc. Isolation products for various components on PCBs. These applications applied by our two part compound equipment are offered high performance and high accuracy , which assure products with high consistency on metering and potting in terms of electrical insulation, adhesion, temperature and fire resistance and durability.

II Metering working Principle
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .

II Features and Benefits:
1. The glue potting system are for AB component materials for metering, mixing and potting .
2. Accurated metering and evenly mixing helps to avoid possible waste of glue.
3. Dispensing size and positioning keep consistently and fastly.
4. Good universality makes our machine suitable for applications of LED, electric and others glue potting and dispensing needed.
5. Easy to program and operate.
6.Fast metering & mixing and running speed keep potting with high efficiency.
7. Tally function, non-standard mode, tank level alert, filter mode, liquid display device, preventing backflow device and other functional device.
FEATURES AT A GLANCE
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 0
Front elevation
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 1
Application
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 2
Core Technology

Applications:

Auto parts , Reverse Sensor, Electronic Circuit Board, Electronic Ballast,air Filters, LED products ,Electronic components,Crafts,Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box,Power module, Ignition coil,Sensor, Photovoltaic module, Photovoltaic inverter and other products which want the potting , dispensing , dosing , metering production process .
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 3
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 4
Suitable Materials:
Two component silicones,polyurethane,epoxies,two part compound,AB compound,Bi-compound
other potting dispensing adhesive .
PRODUCT CONFIGURATION
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
650*550*100mm
Displacement speed
200mm/s(speed)
Out-glue speed
1-12g/s
Accuracy
±1%(output volume)±1%(mixing)
tolerance
≤0.1mm
Flow control
Digital input
Program memory
99pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming
With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W
Air source
0.5-0.8Mpa
Viscosity range
50-20000cps
Outer dimension
1500L*1200W*1600H mm
A tank
25L stainless tank(optional)
B tank
10L stainless tank(optional)
Others
AB tank ,A pump,AB pipeline heating function
Successful Project
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 5
marketing activities oversea
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 6
Project in India
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 7
Project in Russia
SIMILAR PRODUCTS
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 8
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 9
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 10
About Company
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 11

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 12
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 13
Certifications
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 14

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 15
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 16
Exhibition
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 17
Packing & Delivery
Vacuum Gluing Production Line 2 Part Automatic Glue Dispensing Machine 18
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q:Do you offer oversea service?
A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q:How dose your factory do regarding quality control?
A:We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q:What are your payment terms?
A:Normally, 30% advance by T/T and balance paid off before delivery.
Q:Are you a factory or trading company ?
A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
