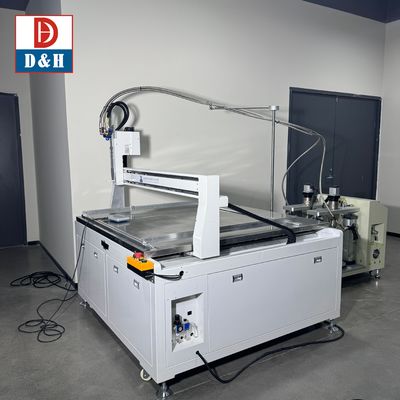

Professional Meter Automatic Glue Mixer Dispenser SZD-1200 Large Platform

MOQ: 1 Unit
Price: 5999
Standard Packaging: 155X135X170 CM
Delivery Period: 5-8 Working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000 unit per month
Details Information
Product Description
Detail Information
Place of Origin
MADE IN CHINA
Brand Name
D&H
Certification
CE,ISO,ROHS
Model Number
SZD-1200
Model NO.:
SZD-1200
Driven Type:
Electric
Transport Package:
Poly Wood Case
Specification:
1200x1200
Origin:
Guangzhou China
Precision:
High Precision
Certification:
RoHS, CE
Warranty:
12 Months
Customization:
Available | Customized Request
Highlight:

Professional Automatic Glue Mixer Dispenser

,

Large Platform Automatic Glue Mixer Dispenser

,

Large Platform automatic glue dispensing machine

Product Description

Professional Meter Mixer SZD-1200 Automatic Glue Mixer Dispenser Large Platform


Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component polyurethanes, epoxies, silicone, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.



D&H accepts a variety of customization including size, number of tanks, temperature control, etc.

Please contact us for more information!


Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine
Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray MachineEpoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine

Introduction :
1.Working Area: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Gear pump special for transparent glue.
4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology:
1 Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2 Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heating panel which can preheat materials to assure good flowability.
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization .
Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine
D&H Pump technology
1 Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine
Valve technology
1.Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.

Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine
Teach data


Working area

1200mm×1200mm×100mm

Processing craft

Dot ,line , arc , circle

Speed

0---250mm/s

Movement accuracy

≤±0.1mm

Mixing ratio

1 :1 ---10:1

Gluing-out speed

0.5g/s --12g/s per single pump

Repeated accuracy

≤±2%

Program memory

999pcs

Adhesive viscosity

300cps~20000cps

Operating mode

Manual /Automatic / third party signal

Proportional control

PLC/ double cylinder plunger pump

Flow control

Digital input

Program

Teaching program

Automatic controlling system

Touch screen / hand terminal

Mixing way

Dynamic mixing

Cleaning way

Self-cleaning

AB Tank

Stainless tank A (25L) B(25L)

Vacuum defoamation(-0.1MPa),4L/s

Liquid level sensor and sound light alarm

Tank stirring

Power supply

220V/50Hz/3500W

Input air pressure

0.4MPa-0.7MPa

Dimension

1550mm×1960mm X1327mm

Materials

Industrial aluminium+stainless material


PLC controlling System
1 Dispensing volume is controlled by the speed of the pump's motors; Glue speed ais adjustable within the speed range.
2 Machine with detecting function that detects the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispenses out at the same time from the glue valve to get a better glue mixing effect.
4 Machine with gel resistance calculator, which prevents the mixture from curing inside.
5 You can set single gluing-out and steady gluing-out functions to meet up with your different process requirements.
6 The whole machine system and function is controlled by Panasonic PLC and MGCS touch screen.
7 Reserved PLC communication interface, which is easy to connect with outside devices.
8 Equipped with a safety lock to prevent staff from wthe rong operation.

Application:
Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine
1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....

2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....

3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Applicable materials
Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .


Service Term

1.Staff training
Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2.Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
 2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.


 Workshop Cornner of factory
Epoxy Stirring Machine Resin Machine Suppliers Epoxy Spray Machine
