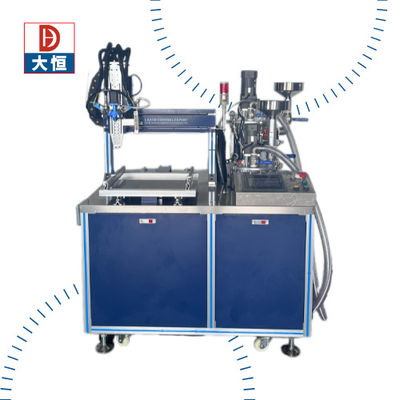

Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer
  • name
  • name
  • name
  • name

Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer

MOQ: 1 Unit
Price: Negotiable
Standard Packaging: Wooden Box Packing for Sea Shipment
Delivery Period: 5-8 Working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000 unit per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
D&H
Certification
CE,ISO,ROHS
Model Number
PGB-200
KEYWORDS:
Quality Two-Component Glue Automatic Potting Dispensing Machine Ab Glue Epoxy Resin Sticker Doming Machine For Stickers Tags
MODEL:
PGB-200
FUNCTIONS:
HEATING ,VACUUM ,STIRRING ,SELF-CLEANING
MIXING MODE:
DYNAMIC MIXING
Highlight:

Epoxy Resin Glue Potting Machine

,

AB Glue Glue Potting Machine

,

Automatic Glue Potting Machine

Product Description
Why Choose Us



Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component polyurethanes, epoxies, silicones, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component dispensing systems, and high-precision dispensing robots. Whether for adhesive, epoxy, or silicone applications, we have the right equipment to meet your needs.




Introduction :

1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology:

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .

2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .

4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .

5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.

6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization .
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 0

D&H Pump technology

1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s,Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 1

Valve technology

1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s,Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 2
Tech Data
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
480*480*100mm
Displacement speed
300mm/s(speed)
Out-glue speed
1-12g/s per single pump
Accuracy
±2%(output volume)±2%(mixing)
tolerance
≤0.1mm
Flow control
Digital input
Program memory
99pcs-999pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W without heating
Air source
0.5-0.7Mpa
Viscosity range
50-20000cps
Outer dimension
2100*1300*1700 mm
A tank
10L 25L 40L stainless tank(optional)
B tank
10L 25L 40L stainless tank(optional)
Others
AB tank ,A pump,AB pipeline heating function





PLC Operation Controlling System

1. Dispensing volume is adjusted by pump motor speed; glue speed is customizable.

2. Features a detection function for pump speed and running time to ensure reliable ratios.

3. Adjustable glue output ensures simultaneous dispensing of A/B for optimal mixing.

4. Includes a gel resistance calculator to prevent curing inside the mixture.

5. Offers single and steady gluing options for various process needs.

6. Controlled by Panasonic PLC and MGCS touch screen.

7. Has a reserved PLC communication interface for easy external device connection.

8. Equipped with a safety lock to prevent incorrect operation.


Application
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 3
1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....
3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Applicable Material
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 4
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .

About Us

Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 5

Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 6Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 7Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 8

Our Customer Cases
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 9
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 10
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 11
Automatic AB Glue Epoxy Resin Dispensing Application Machine Glue Potting Machine Mixer 12
Service Term
1, Staff training Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2,Maintenance Service 2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
