Ab Glue Dispensing Potting Sparying Dosing System Shipping Cost and Customized Request
  • name
  • name
  • name
  • name
  • name
  • name

Ab Glue Dispensing Potting Sparying Dosing System Shipping Cost and Customized Request

Details Information
Product Description
Detail Information
Certification
CCC, FDA, RoHS, ISO, CE
Model NO.:
PGB-200
Warranty:
12 Months
Automatic Grade:
Automatic
Installation:
Vertical
Driven Type:
Electric
Transport Package:
Poly-Wood Case
Specification:
700x700x100
Trademark:
Daheng
Origin:
China
HS Code:
8424899990
Supply Ability:
1000/Year
Package Size:
100.00cm * 100.00cm * 100.00cm
Package Gross Weight:
100.000kg
After-sales Service:
Provided
Precision:
High Precision
Condition:
New
Samples:
US$ 11900/Piece 1 Piece(Min.Order) |
Customization:
Available | Customized Request
Shipping Cost :
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

ab glue glue potting machine

,

ab glue epoxy potting machine

,

electric glue potting machine

Product Description

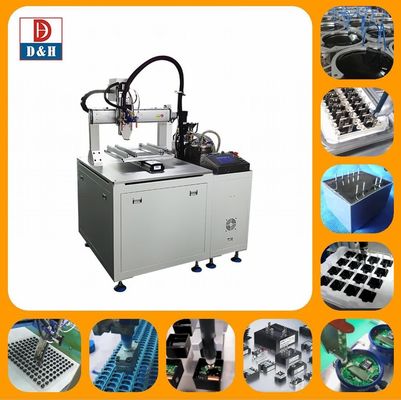

AB Glue Machine Dispensing potting sparying dosing System Technology


DOUBLE COMPONENT POTTING SYSTEM
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Ab Glue Machine Dispensing Potting Sparying Dosing System TechnologyAb Glue Machine Dispensing Potting Sparying Dosing System Technology

Potting and encapsulation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic and se-mi automatic fluid dispensing potting machine

What is the difference between 2K AB adhesive materials manual potting machine and robot potting machine ?
Automatic AB potting machine is composed of Five Systems:
  1. Vacuum material-feeding system or diaphragm pump feeding system
  2. High precision pump metering system
  3. Dynamic/Static mixing system
  4. Three-axis motion system
  5. Programming control system.

Ab Glue Machine Dispensing Potting Sparying Dosing System Technology

AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.

Semi automatic gue dispensing machine
  1. Vacuum material-feeding system
  2. High precision pump metering system
  3. Dynamic/Static mixing system
  4. Manual dispensing by glue gun or pedal .
Ab Glue Machine Dispensing Potting Sparying Dosing System Technology
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
Features :
Strong versatility / Multiple configuration / High production capacity / High precision
  1. Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
  2. Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
  3. Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
  4. Vacuum : A &B tank vacuum for degas the bubble inside material .
  5. Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.

Advantages:

1,Accurated metering and even mixing helps to avoid the waste of material.
2,Dispensing volume and positioning keep machine work consistent and fast.
3,Good universality
4,Easy to program and operate.
5,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.


  1. Applications:
Ab Glue Machine Dispensing Potting Sparying Dosing System Technology
Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....

Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....

Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , boattery cover , rectifier and so on ...


Suitable Material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.

Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .


Machine description and working principle

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.



Company Profile

Guangzhou Daheng Automation Equipment CO., Ltd is specialized in the R&D and sale of glue metering, mixing and dispensing machinery.
We believe in "the creation improves future". Core technology is the only true creation. The e core of all the liquid controlling device is its metering and mixing system. Daheng, always taking its continuous efforts in the new technology, new products and new working process, created its unique tech "double- cylinder pump", which is a liquid control system of high precision, changeable, continuous and long span time, and can be applied with glues of different viscosity. The core technology makes us the first pioneer in the gluing machine industry which passed CE certificate, SGS. We have over 20 patents, many original products and many "first" in the industry.
Including the standard machines we already have, we also accept customized services. We,headed in Guangzhou, and branched in Zhongshan, Shenzhen, Shanghai, and exported into Russia, Turkey, Netherland, Singapore, Indonesia and so on. We provide the on-going train-up for customers, 24 hours x 7 days service, and keep ourselves being improved on and on.
The current and great development of Daheng depends on your support and trust. We will keep ourselves making long effort in the industry and products. We will keep improved in the cylinder pump and precision valve, and keep the leading among our competitors.

Standard Wooden Case with Vacuum Package

1.By air, for sample and small package, international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3.Other ways as customer requested.
Ab Glue Machine Dispensing Potting Sparying Dosing System Technology

FAQ
Do you offer oversea service?
We do not have overseas service center,but we can offer oversea service if customer required, engineer will offer face to face service.

How dose your factory do regarding quality control?
We assure 1 year warranty for the main part,also we offer spare part for back up.Please check with sales engineer in detail.

What are your payment terms?
Normally, 30% advance by T/T and balance paid off before delivery.

Are you a factory or trading company ?

We are a factory with SGS certified and more than 20 patents,and cooperate with different customers  coverd about 40 countries for over 15 years.


Glue dispenser always drops ?

Drops always happened when valve closed . The reason may be low concentration of glue , big air-pressure or large diameter of needles.

Narrow needles will effect the flow of the liquid and cause back pressure . It will lead to dropping when the valve closed . Too narrow needles will effect the drainage of air when valve start to work, but it can be solved if change suitable needles .

Conical needles with less back pressure and liquid flow smoothly .

It is better to drainage of the air advance or use no-foam glue or deaeration to avoid the air cause dropping after valve closed .

Glue dispensing not evenly ?
The problem cause mainly because of the storage flow pressure tank or air pressure is not stable.

Inlet pressure regulating table should be set lower 10-15psi than factory minimum pressure . The pressure in pressure tank should be set upper than the middle pressure of regulating table . It should be avoided to use the pressure lower than the middle pressure of regulating table .

Control pressure of rubber valve at least higher than 60psi to assured glue evenly .

We should check the glue output speed at last . The glue is uneven if the time less than 15/1000s , the output speed more longer , the glue dispensing will be more stable .

Slow flow velocity ?
It should be changed the pipe from 1/4 to 3/8 if the flow velocity too slowly .
The pipe is the shorter the better if no requirement .

Air in the fluid ?
Excessive fluid pressure and short valve opening time may lead to the air infiltration liquid . We can use the conical needles and reduce fluid pressure .

Instant glue (quick adhesive) blocking in valve connector and pipes?
This problem is caused by heavy moisture and recycle instant glue . We should make sure to use new instant glue and wash the pipes with dry . Make sure air dry and add filter between plant air pressure and valve .

UV glue (UV curing glue )

Make sure to use black pipeline.
Don't add new UV glue to old UV glue in pressure tank , we should drain off the old UV glue before pouring new UV glue into pressure tank because the UV glue will produce bubble after a period of time and lead to glue dispensing unevenly .
