Automatic Epoxy Two Components Glue Mixing Machine for Customized Industrial Needs
  • name
  • name
  • name
  • name
  • name

Automatic Epoxy Two Components Glue Mixing Machine for Customized Industrial Needs

Details Information
Product Description
Detail Information
Model NO.:
JYPJ-1000
Installation:
Vertical
Driven Type:
Electric
Glue & Ratio:
1:1 To 20:1, Epoxy, Silicone, PU, UV
Certificate:
Ce, SGS
Flow Speed:
0-66g/5s, Or Customized
Additional Function:
Heating, Vacuum, Self-Refilling, Self-Cleaning
Transport Package:
Wood Box
Specification:
1500x1200x1500mm
Trademark:
DH
Origin:
China
After-sales Service:
One Year
Precision:
High Precision
Condition:
New
Certification:
CCC, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Customization:
Available | Customized Request
Highlight:

automatic glue potting machine

,

automatic epoxy potting machine

,

epoxy glue potting machine

Product Description

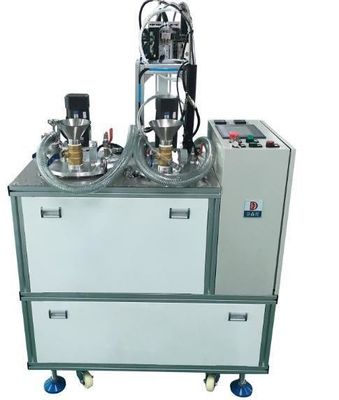

Automatic Epoxy Two Components Glue Mixing Machine
Manual AB glue dispensing machine JYPJ-1000

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes JYPJ-1000 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Automatic Epoxy Two Components Glue Mixing Machine
Automatic Epoxy Two Components Glue Mixing Machine


Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Automatic Epoxy Two Components Glue Mixing Machine

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Model & Type JYPJ-1000 Full Auto Gluing Machine Dispenser
Certificate CE, SGS
Dimension 1500x1200x1500mm
N.W. 260kg
metering pump Gear pump/Screw pump/plunger pump
Flow Speed 0-66g/5s, or customized
glue viscosity 0-30000 Cps
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Function Heating, Vacuum, Self-refilling, Self-cleaning
Application LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^


Automatic Epoxy Two Components Glue Mixing Machine
