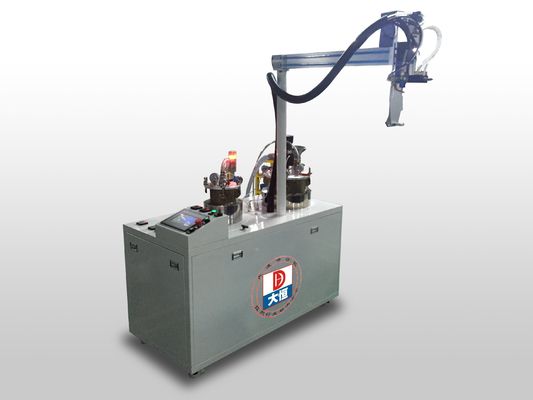

High Precision Semi-Automatic Glue Dispenser for Industrial Manufacturing Industry
  • name
  • name
  • name
  • name
  • name
  • name

High Precision Semi-Automatic Glue Dispenser for Industrial Manufacturing Industry

Details Information
Product Description
Detail Information
Model NO.:
PJL-1200
Driven Type:
Electric
Glue & Ratio:
1:1 To 20:1, Epoxy, Silicone, PU, UV
Certificate:
Ce, SGS
Flow Speed:
0-66g/5s, Or Customized
Additional Function:
Heating, Vacuum, Self-Refilling, Self-Cleaning
Transport Package:
Wood Box
Specification:
1500x1200x1500mm
Trademark:
DH
Origin:
China
Precision:
High Precision
Condition:
New
Certification:
CCC, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

automatic automated glue dispenser

,

industrial automated glue dispenser

,

industrial automatic glue dispenser

Product Description
Semi-Automatic Glue Dispensing Machine


Manual AB glue dispensing machine PJL-1200

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PJL-1200 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Semi-Automatic Glue Dispensing Machine
Semi-Automatic Glue Dispensing Machine


Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Semi-Automatic Glue Dispensing Machine

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Model & Type PJL-1200 Full Auto Gluing Machine Dispenser
Certificate CE, SGS
Dimension 1500x1200x1500mm
N.W. 260kg
metering pump Gear pump/Screw pump/plunger pump
Flow Speed 0-66g/5s, or customized
glue viscosity 0-30000 Cps
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Function Heating, Vacuum, Self-refilling, Self-cleaning
Application LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^


Semi-Automatic Glue Dispensing Machine

Whatsapp, wechat and Tel are available to contact me for quick response
Name:Mr. Jason Huang
Tel: +86 15626250060
Semi-Automatic Glue Dispensing Machine

Tags:

epoxy glue potting machine,

electric glue potting machine,

automatic glue potting machine
