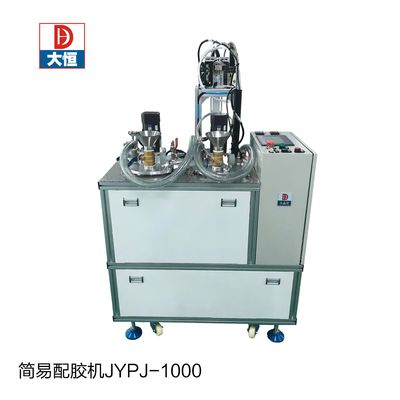

Multi Function Manual Ab Glue Dispensing Machine with CE Certification 1500x1200x1500mm
  • name
  • name
  • name
  • name
  • name
  • name

Multi Function Manual Ab Glue Dispensing Machine with CE Certification 1500x1200x1500mm

Details Information
Product Description
Detail Information
Model NO.:
JYPJ-1000
Installation:
Vertical
Driven Type:
Electric
Glue & Ratio:
1:1 To 10:1, Epoxy, Silicone, PU, UV
Certificate:
CE, SGS
Flow Speed:
1-66g/5s, Or Customized
Additional Function:
Heating, Vacuum, Self-Refilling, Self-Cleaning
Transport Package:
Wood Box
Specification:
1500x1200x1500mm
Trademark:
DH
Origin:
China
After-sales Service:
One Year
Precision:
High Precision
Condition:
New
Certification:
CCC, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Customization:
Available | Customized Request
Highlight:

ab glue glue machine

,

ab glue glue dispensing machine

,

pu glue machine

Product Description


Multi Function Manual Ab Glue Dispensing Machine with CE Certification 1500x1200x1500mm 0automatic resin dispensing mixer machine

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PJL-1200 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Multi Function Manual Ab Glue Dispensing Machine with CE Certification 1500x1200x1500mm 1
Multi Function Manual Ab Glue Dispensing Machine with CE Certification 1500x1200x1500mm 2
Machine Model PJL-1000
Dimension 1500*1100*1600mm
XYZ working area
AB ration 1:1 to 20:1
Movement track Dot/Line/Arc/Circle
3 axis Speed
Glue speed 0.5-24g/s
Accuracy
Program 99pcs
Metering pump 3.6cc gear pump / 48cc screw pump / 200ml dual plunge pump
Viscosity <30,000 cps
Operation software Patent English operation software
Flow control Digital input
3 axis Programming method Teaching programming
Automated control system PLC / Touch screen
Glue control system AB glue suction valve to achieve independent operation of AB glue
Mixed mode Dynamic and static optional, instant mixing
Glue tank Stainless steel 40L, 25L, or 10L
Input air pressure 0.5-0.7 Mpa
Vacuum pump 4L/S
Cleaning liquid tank Stainless steel 7L
Power supply 220V/380V 1200W (not including heating power
 Main Spare Parts quantity Brand
PLC 1 set Panasonic
Software system 1 set Daheng patent
Industrial human-computer interface touch screen 1 pc MCGS
Metering pump motor / Driver 2sets Lakeside
Photoelectric proximity switch 8 sets YAMATAKE
Metering pump bearing 4 sets NSK
Pneumatic component (solenoid/pressure regulating
valve/Pneumatic duplex)
pcs
Air tac
Electronic component (relay/contactor/power
supply/leakage switch)
pcs
CHNT
Synchronous belt 2 sets PMI-GROUP
Motor/driver 2 sets Lakeside
Z axis
AB tank stirring motor 2 pcs DDK
metering pump 1 set Daheng patent
metering pump 1 set Daheng patent
Dynamic double liquid valve 1 set Daheng patent
High quality Glue tube 2 pcs Made in China

Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Multi Function Manual Ab Glue Dispensing Machine with CE Certification 1500x1200x1500mm 3

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Multi Function Manual Ab Glue Dispensing Machine with CE Certification 1500x1200x1500mm 4
Tags:

epoxy glue potting machine,

electric glue potting machine,

automatic glue potting machine
