Dual Resins Dispensing with Meter Mix Machines High Precision Customization Request
  • name
  • name
  • name
  • name
  • name
  • name

Dual Resins Dispensing with Meter Mix Machines High Precision Customization Request

Details Information
Product Description
Detail Information
Model NO.:
PJL-1200
Driven Type:
Electric
Transport Package:
Poly Wood Case
Specification:
1200x1200
Trademark:
Daheng / OEM
Origin:
Guangzhou China
HS Code:
842489990
Supply Ability:
50PCS / Month
Precision:
High Precision
Condition:
New
Certification:
CCC, PSE, FDA, RoHS, ISO, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

resins glue potting machine

,

resins epoxy potting machine

,

high precision glue potting machine

Product Description

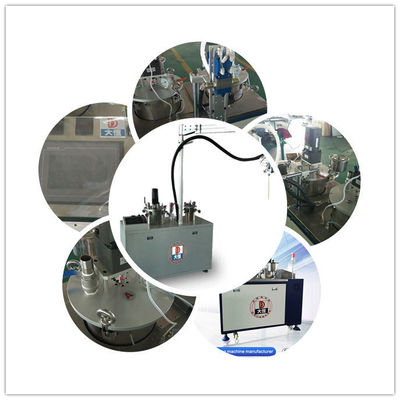

Dual RESINS DISPENSING WITH METER MIX machines


Dual Resins Dispensing with Meter Mix Machines


2. Application :

Dual Resins Dispensing with Meter Mix Machines



3. Machine parameter

Item No.: PJL-1200
AB ratio: 100:100-100:10 adjustable
Movment Track: Dot/Line/Arc/Circle
Speed: 500mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy:  ±2%(potting) ±2%(mixing)
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps(Viscosity can be down via heating glue)
Operation: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control:  Digital Input
Programming method:  Teaching programming
Automated control system:  PLC / touch screen (programming, modification, storage, etc.)
Glue control system:  AB glue suction valve to achieve independent operation of AB glue
Mixed mode:  dynamic static optional, instant mixing, easy to clean
Tank: stainless steel tank (60L),(50L),(40L),(25L),(10L)optional
Power supply:  220V/50Hz/1200W ( Test under heating unction is not power on)

4. Characteristic
PJL-1500 Glue mixing machine
Features
Stainless steel table
Suitable for multiple scenes
Free to control, easy to learn
PJL-1200 Standard dispensing machine
Multiple configuration, suitable for a variety of products
High versatility and high cost performance
Suitable for various products
Can be used with production lines
PJL-1000
Dimension: 1050*1000*1700mm
PJL-1500
Dimension: 1500*1000*1700MM
PJL-1200
Dimension: 1650*750*1900MM


5. Working principle

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Dual Resins Dispensing with Meter Mix Machines
