Ce Certificate Automatic Grade Two Parts Glue Dispenser for Smooth Glue Application
  • name
  • name
  • name
  • name
  • name
  • name

Ce Certificate Automatic Grade Two Parts Glue Dispenser for Smooth Glue Application

Details Information
Product Description
Detail Information
Model NO.:
PGB-700
Driven Type:
Electric
Glue & Ratio:
1:1 To 20:1, Epoxy, Silicone, PU, UV
Certificate:
Ce, SGS
Xyz Working Area:
700*700*80mm
Flow Speed:
0-66g/5s, Or Customized
Additional Function:
Heating, Vacuum, Self-Refilling, Self-Cleaning
Transport Package:
Wood Box
Specification:
1500x1200x1500mm
Trademark:
DH
Origin:
China
Precision:
High Precision
Condition:
New
Certification:
CCC, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

ce glue dispenser

,

ce silicone dispenser

,

automatic glue dispenser

Product Description
Automatic Two Parts Glue Dispenser

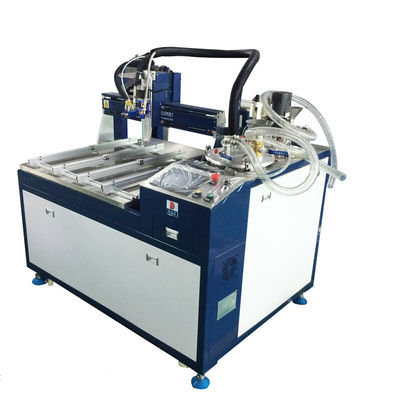

Automatic glue dispensing machine PGB-700

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Automatic Two Parts Glue Dispenser
Automatic Two Parts Glue Dispenser


Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Automatic Two Parts Glue Dispenser

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Model & Type PGB-700 Full Auto Gluing Machine Dispenser
Certificate CE, SGS
Dimension 1500x1200x1500mm
N.W. 260kg
XYZ Working Area 700x700x80mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Function Heating, Vacuum, Self-refilling, Self-cleaning
Application LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^


Automatic Two Parts Glue Dispenser

Whatsapp, wechat and Tel are available to contact me for quick response
Name:Mr. Jason Huang
Tel: +86 15626250060
Automatic Two Parts Glue Dispenser
