Industrial Applications Automatic Glue Dispenser PGB-700 with High Precision

Products

Vacuum Potting Casting Machine

High Precision Dispensing Valve

PU Dispensing Machine

Ms. Katherine Yang

dh03@dahengkongjiao.com

86--18926136909

8618565457600

Contact Now

Industrial Applications Automatic Glue Dispenser PGB-700 with High Precision

Details Information

Product Description

Detail Information

Model NO.:

PGB-700

Driven Type:

Electric

Glue & Ratio:

1:1 To 20:1, Epoxy, Silicone, PU, UV

Certificate:

Ce, SGS

Xyz Working Area:

700*700*80mm

Flow Speed:

0-66g/5s, Or Customized

Additional Function:

Heating, Vacuum, Self-Refilling, Self-Cleaning

Transport Package:

Wood Box

Specification:

1500x1200x1500mm

Trademark:

Origin:

China

Precision:

High Precision

Condition:

New

Certification:

CCC, CE

Warranty:

12 Months

Automatic Grade:

Automatic

Installation:

Vertical

Customization:

Available | Customized Request

Highlight:

automatic automated glue dispenser

high precision automated glue dispenser

high precision automatic glue dispenser

Product Description

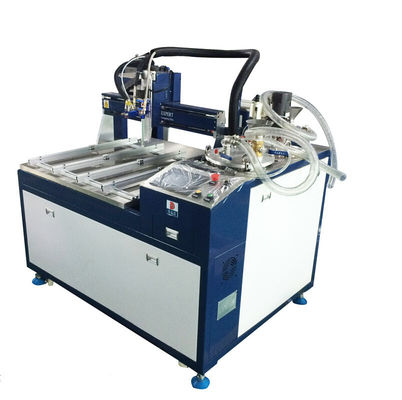

Automatic glue dispensing machine PGB-700

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Industrial Applications Automatic Glue Dispenser PGB-700 with High Precision 1

Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Industrial Applications Automatic Glue Dispenser PGB-700 with High Precision 3

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Model & Type	PGB-700 Full Auto Gluing Machine Dispenser
Certificate	CE, SGS
Dimension	1500x1200x1500mm
N.W.	260kg
XYZ Working Area	700x700x80mm
Flow Speed	0-66g/5s, or customized
Moving Speed	0-300mm per second
Glue & Ratio	1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability	+/-0.02g
Accuracy	+/- 1%
Power	AC220V or AC 380V
Total Power Consume	3kw - 5kw
Additional Function	Heating, Vacuum, Self-refilling, Self-cleaning
Application	LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^

Whatsapp, wechat and Tel are available to contact me for quick response
Name:Mr. Jason Huang
Tel: +86 15626250060
Industrial Applications Automatic Glue Dispenser PGB-700 with High Precision 5
