0.5-0.7MPa Input Air Pressure Ab Part Glue Inline Adhesive Dispenser for Production

MOQ: 1 Unit
Standard Packaging: Polywooden case
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Details Information
Product Description
Detail Information
Place of Origin
Made In China
Brand Name
D&H
Certification
CCC, FDA, RoHs, ISO, CE
Model Number
PGB-700
Driven Type:
Electric
Tank Volume:
10L, 25L, 40L
Mixing Method:
Dynamic / Static
Moving Speed:
250mm/S
Accuracy:
1%
Support Ratio:
1:1 To 10:1
Input Air Pressure:
0.5-0.7MPa
Function:
Degassing, Cleaning, Heating Resin
Touch Screen:
Yes
Gluing Speed:
1-12ml/S
Gluing Process:
DOT, Circle. Line
Transport Package:
Wooden Packing
Trademark:
D&H
Origin:
China
HS Code:
8424899990
Supply Ability:
50PCS Per Month
Precision:
High Precision
Condition:
New
Certification:
CE
Warranty:
12 Months
Automatic Grade:
Semiautomatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

ab glue dispenser

,

ab adhesive dispenser

,

adhesive glue dispenser

Product Description

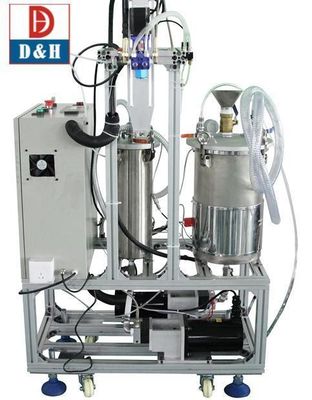

Ab Part Glue Inline Adhesive Dispenser

0.5-0.7MPa Input Air Pressure Ab Part Glue Inline Adhesive Dispenser for Production 0
Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .


Introduction :

1. Working Area: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Gear pump /screw pump/ cylinder pump special for transparent glue.
4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology:

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure . 5 5.Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with artificial feeding mouth that can be added glue appropriately by hand .
7 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

1. Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.

Valve technology

1. Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Tech Data
Adjustable Ratio
1 :1 ---10:1 adjustable
Output Speed
0.5g/s -12g per single pump
Mixing accuracy
+/- 2%
Program memory
10pcs
Viscosity
50cps~35000cps
Operation mode
manual / automatic/ Third party signal
Ratio control
PLC/double cylinder plunger pump
Flow control
Digital input
Program mode
Tech program
Automatic control system
Touch screen and trigger
Mixed mode
Dynamic mixing (with self-cleaning function)
Tank
Stainless tank A(25L)and stainless tank B(10L)
Liquid level sensor (low liquid level /high liquid level and limit liquid level)
Tank stir
Constant heat (temperature to 80°C)
Y type Filter
Voltage
220V/50Hz/3500W
Input air pressure
0.4MPa-0.7MPa
Dimension
1200mm×600mm X1500mm
Machine frame
SPCC+Industrial aluminium +stainless +metal plate
Others
AB tank ,A pump,AB pipeline heating function
PLC Operation Controlling System
1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
 4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .
Application
1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts.... 2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .... 3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....
0.5-0.7MPa Input Air Pressure Ab Part Glue Inline Adhesive Dispenser for Production 1
