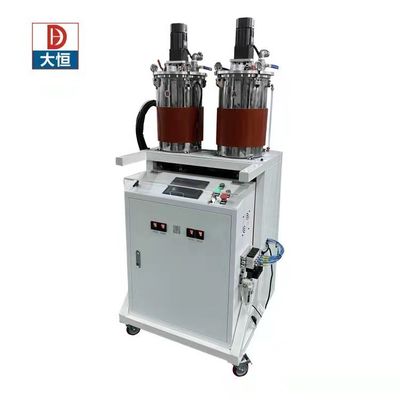

Vertical Installation Automatic 220V Glue Dispensing Machine for PCB Customization
  • name

Vertical Installation Automatic 220V Glue Dispensing Machine for PCB Customization

MOQ: 1 Unit
Price: Negotiable
Standard Packaging: 155X135X170 CM
Delivery Period: 5-8 Working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000 unit per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
D&H
Certification
CE,ISO,ROHS
Model Number
PJL-800
Driven Type:
Electric
Tank Volume:
10L,25L,40L
Mixing Method:
Dynamic / Static
Transport Package:
Wooden Packing
Trademark:
D&H
Origin:
China
HS Code:
8424899990
Supply Ability:
50PCS Per Month
Precision:
High Precision
Condition:
New
Certification:
CE
Warranty:
12 Months
Automatic Grade:
Semiautomatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

vertical glue dispenser

,

vertical silicone dispenser

,

automatic glue dispenser

Product Description

Automatic Polyurethane Resin Epoxy Resin Glue Dispenser 220V Glue Dispensing Machine For Pcb

Automatic Polyurethane Resin Epoxy Resin Glue Dispenser 220V Glue Dispensing Machine for PCB
Choosing Meter Mix Dispense Equipment
In applications the dual cartridges are impractical due to large quantities used. Dispensing equipment can be used to assure the correct mix ratio, then the adhesive is dispensed through adynamic /static mix tip.
Piston Pump metering and mixing dispensing equipment is ideal for higher viscosity epoxy and medium production output.
Cylinder pump metering and mixing dispensing equipment is preferred for lower viscosity adhesives and are used in fully automated high production environments.
2-component dosing / dispensing
Nowadays a modern production without two-component materials is unimaginable.
I.Machine description and working principle
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
II.Main Function:
1.Automatic metering and mixing
2.Manual Gluing
3.Auto alarm for lack of material or full material
4.Gluing ratio and quantity adjustable
5.Auto cleaning
6.Glue tank Vacuum Defoaming (Optional)
7.Glue barrels,metering pump,glue pipe can be heating (Optional)

Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.
Applications:LED products ,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovol­taic inverter .etc

I.Machine description and working principle

Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.

II.Main Function:

1.Automatic metering and mixing

2.Manual Gluing

3.Auto alarm for lack of material or full material

4.Gluing ratio and quantity adjustable

5.Auto cleaning

6.Glue tank Vacuum Defoaming (Optional)

7.Glue barrels,metering pump,glue pipe can be heating (Optional)



III.Specification:

Model No:

 PGB-700

Mixing Ratio

100:100-10:100(1:1-1:10) Adjustable

Metering precision

±1%

Outflow speed

1g/sec-15g/sec

Mixing precision

±1%

Mixing mode

Dynamic mixing /Static mixing

Glue Viscosity

Lower than 20000 CPS(mPa·s)

Control mode

PLC + Touch Screen

Control system

Independent R&D

Measuring mode

Stepping motor/High-precision, wear-resistant,

long-life Gear pump

Working voltage

AC 220V 50Hz/60Hz

Power requirement

3.55KW

Air pressure requirement

4.5-8KG

Machine Dimension

1500(L)*1200(W)*1500(H)mm

Weight

approx 260 KG

Work environment

Humidity: 20%~98%RH; Temperature: 0~+40°c



Suitable Material: For waterproof, adhesive, fixed two-component adhesive.

Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.

Applications:LED products ,Crafts,Electronic components

Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovol­taic inverter .etc

IV:Application

Automatic Polyurethane Resin Epoxy Resin Glue Dispenser 220V Glue Dispensing Machine for PCB
V, packing
Automatic Polyurethane Resin Epoxy Resin Glue Dispenser 220V Glue Dispensing Machine for PCB
Automatic Polyurethane Resin Epoxy Resin Glue Dispenser 220V Glue Dispensing Machine for PCB
