High Flow Speed PGB700 Two-Component Automatic Mixing Dispenser for Thermal Glue
  • name
  • name
  • name
  • name
  • name
  • name

High Flow Speed PGB700 Two-Component Automatic Mixing Dispenser for Thermal Glue

Details Information
Product Description
Detail Information
Model NO.:
Pgb700
Installation:
Vertical
Driven Type:
Electric
Glue & Ratio:
1:1 To 20:1, Epoxy, Silicone, PU, UV
Certificate:
CE, SGS
Xyz Working Area:
700*700*80mm
Flow Speed:
0-66g/5s, Or Customized
Additional Function:
Heating, Vacuum, Self-Refilling, Self-Cleaning
Transport Package:
Wood Box
Specification:
1500x1200x1500mm
Trademark:
DH
Origin:
China
After-sales Service:
One Year
Precision:
High Precision
Condition:
New
Certification:
CCC, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Customization:
Available | Customized Request
Highlight:

automatic glue dispenser

,

automatic silicone dispenser

,

ce glue dispenser

Product Description
Dispensing Machine Glue Two-Component Automatic Mixing Dispensing Machine Thermal Conductive Glue Injection

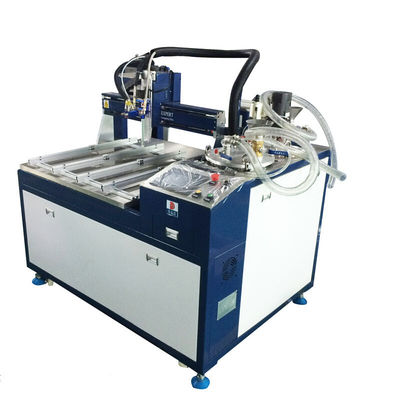

Automatic glue dispensing machine PGB-700

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Dispensing Machine Glue Two-Component Automatic Mixing Dispensing Machine Thermal Conductive Glue Injection
Dispensing Machine Glue Two-Component Automatic Mixing Dispensing Machine Thermal Conductive Glue Injection


Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.

Dispensing Machine Glue Two-Component Automatic Mixing Dispensing Machine Thermal Conductive Glue Injection

Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.

Model & Type PGB-700 Full Auto Gluing Machine Dispenser
Certificate CE, SGS
Dimension 1500x1200x1500mm
N.W. 260kg
XYZ Working Area 700x700x80mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Function Heating, Vacuum, Self-refilling, Self-cleaning
Application LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^


Dispensing Machine Glue Two-Component Automatic Mixing Dispensing Machine Thermal Conductive Glue Injection
