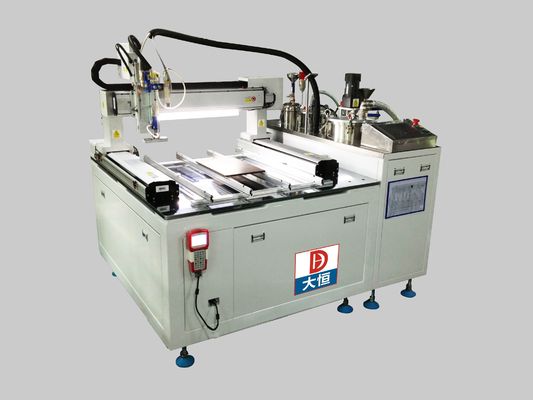

Industrial Machinery LED Display Vacuum Resin Potting Machine with Automatic Grade
  • name
  • name
  • name
  • name
  • name
  • name

Industrial Machinery LED Display Vacuum Resin Potting Machine with Automatic Grade

Details Information
Product Description
Detail Information
Model NO.:
PGB-700
Driven Type:
Electric
Transport Package:
Wooden Packing
Trademark:
D&H
Origin:
China
HS Code:
8424899990
Supply Ability:
50PCS Per Month
Precision:
High Precision
Condition:
New
Certification:
CE
Warranty:
12 Months
Automatic Grade:
Semiautomatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

resin glue dispenser

,

resin silicone dispenser

,

automatic glue dispenser

Product Description

Industrial Machinery LED Display Vacuum Resin Potting Machine 3 Axis Epoxy Glue Dispensing Robot

Industrial Machinery LED Display Vacuum Resin Potting Machine 3 Axis Epoxy Glue Dispensing Robot

Model No:

PJL-100

Mixing Ratio

100:100-10:100(1:1-1:10) Adjustable

Metering precision

±1%

Outflow speed

1g/sec-15g/sec

Mixing precision

±1%

Mixing mode

Dynamic mixing /Static mixing

Glue Viscosity

Lower than 20000 CPS(mPa·s)

Control mode

PLC + Touch Screen

Control system

Independent R&D

Measuring mode

Stepping motor/High-precision, wear-resistant,long-life Gear pump

Working voltage

AC 220V 50Hz/60Hz

Power requirement

3.55KW

Air pressure requirement

4.5-8KG

Machine Dimension

1500(L)*1200(W)*1500(H)mm

Weight

approx 260 KG

Work environment

Humidity: 20%~98%RH; Temperature: 0~+40°c

Industrial Machinery LED Display Vacuum Resin Potting Machine 3 Axis Epoxy Glue Dispensing Robot

Model PGB-700 Voltage 220V-380V
XYZ axis  700*700*80(mm) Application led,electronic,filter
Glue support Silicone, epoxy resin, urethane Certification CE, RoHS
Power 3600w Warranty 1years
Item Name mixing and dispensing  Function DC 12V-14V
Ratio support  1:1 to 10:1 MOQ 1 Piece
Gluing Speed 5-66g/5s Adjustable Price depends your glue feature
Air Pressure: 0.5-0.7Mpa Port Huangpu
Industrial Machinery LED Display Vacuum Resin Potting Machine 3 Axis Epoxy Glue Dispensing Robot
