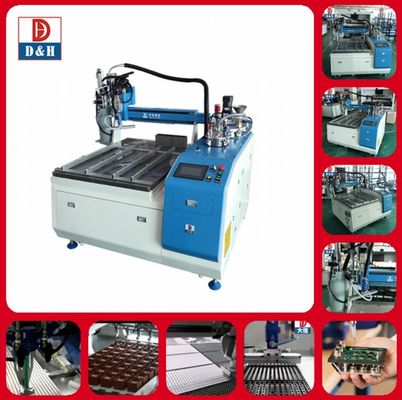

Improve Your Production Line with Automatic Grade Robotic Adhesive Dispensing Machine
  • name
  • name
  • name
  • name
  • name
  • name

Improve Your Production Line with Automatic Grade Robotic Adhesive Dispensing Machine

Details Information
Product Description
Detail Information
Certification
CCC, PSE, FDA, RoHS, ISO, CE
Model NO.:
PGB-810
Warranty:
12 Months
Automatic Grade:
Automatic
Installation:
Vertical
Driven Type:
Electric
Transport Package:
Poly Wood Case
Specification:
1200x1200
Trademark:
Daheng / OEM
Origin:
Guangzhou China
HS Code:
842489990
Supply Ability:
50PCS / Month
After-sales Service:
Provided
Precision:
High Precision
Condition:
New
Customization:
Available | Customized Request
Shipping Cost :
About Shipping Cost And Estimated Delivery Time.
 :
Initial Payment Full Payment
Currency:
US$
Return&refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

robotic adhesive dispensing machine

,

automatic adhesive dispensing machine

,

automatic adhesive dispensing equipment

Product Description

Two component automatic glue dispensing machine robotic adhesive dispensing

Why Choose us !

Where to buy ab epoxy ,silicone ,polyurethane machine ?

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems.
Two Component Automatic Glue Dispensing Machine Robotic Adhesive Dispensing

Two Component Automatic Glue Dispensing Machine Robotic Adhesive DispensingTwo Component Automatic Glue Dispensing Machine Robotic Adhesive Dispensing


Introduction :
1.Working Area: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Gear pump special for transparent glue.
4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology:
1 Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2 Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heating panel which can preheat materials to assure good flowability.
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology
1 Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.

Valve technology
1.Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.


Teach data


Working area

700mm×800mm×100mm

Processing craft

Dot ,line , arc , circle

Speed

0---250mm/s

Movement accuracy

≤±0.1mm

Mixing ratio

1 :1 ---10:1

Gluing-out speed

1g/s --20g/s

Repeated accuracy

≤±2%

Program memory

99 pcs

Adhesive viscosity

300cps~20000cps

Operating mode

Manual /Automatic / third party signal

Proportional control

PLC/ double cylinder plunger pump

Flow control

Digital input

Program

Teaching program

Automatic controlling system

Touch screen / hand terminal

Mixing way

Dynamic mixing

Cleaning way

Self-cleaning

AB Tank

Stainless tank A (25L) B(25L)

Vacuum defoamation(-0.1MPa),4L/s

Liquid level sensor and sound light alarm

Tank stirring

Power supply

220V/50Hz/3500W

Input air pressure

0.4MPa-0.7MPa

Dimension

1550mm×1960mm X1327mm

Materials

Industrial aluminium+stainless material


PLC controlling System

1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .

Application:
Two Component Automatic Glue Dispensing Machine Robotic Adhesive Dispensing
1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....

2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....

3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Applicable materials
Two Component Automatic Glue Dispensing Machine Robotic Adhesive Dispensing
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .


Service Term

1.Staff training
Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2.Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
 2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.


 Workshop Cornner of factory
Two Component Automatic Glue Dispensing Machine Robotic Adhesive Dispensing


Packing&DeliveryTwo Component Automatic Glue Dispensing Machine Robotic Adhesive Dispensing
Two Component Automatic Glue Dispensing Machine Robotic Adhesive Dispensing
