Metering Mixing and Dispensing Machine for PU Resin Dynamic Polyurethane Dosing System

Products

Vacuum Potting Casting Machine

High Precision Dispensing Valve

PU Dispensing Machine

Ms. Katherine Yang

dh03@dahengkongjiao.com

86--18926136909

8618565457600

Contact Now

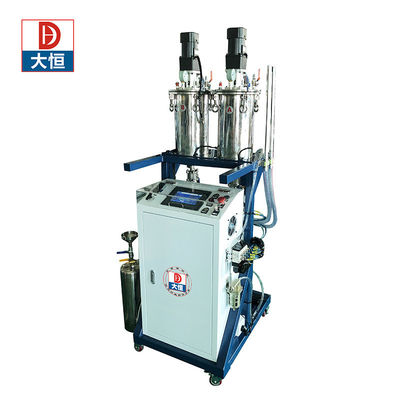

Metering Mixing and Dispensing Machine for PU Resin Dynamic Polyurethane Dosing System

Details Information

Product Description

Detail Information

Driven Type:

Electric

Tank Volume:

10L,25L,40L

Mixing Method:

Dynamic / Static

Transport Package:

Wooden Packing

Trademark:

D&H

Origin:

China

HS Code:

8424899990

Supply Ability:

50PCS Per Month

Precision:

High Precision

Condition:

New

Certification:

Warranty:

12 Months

Automatic Grade:

Semiautomatic

Installation:

Vertical

Customization:

Available | Customized Request

Highlight:

pu resin dispensing machine

pu metering mixing and dispensing machine

resin metering mixing and dispensing machine

Product Description

Metering Mixing and Dispensing Machine PU Resin Dynamic Polyurethane Dosing System 2 Component Silicone Epoxy Resin Machine

Choosing Meter Mix Dispense Equipment
In applications the dual cartridges are impractical due to large quantities used. Dispensing equipment can be used to assure the correct mix ratio, then the adhesive is dispensed through adynamic /static mix tip.
Piston Pump metering and mixing dispensing equipment is ideal for higher viscosity epoxy and medium production output.
Cylinder pump metering and mixing dispensing equipment is preferred for lower viscosity adhesives and are used in fully automated high production environments.
2-component dosing / dispensing
Nowadays a modern production without two-component materials is unimaginable.
I.Machine description and working principle
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
II.Main Function:
1.Automatic metering and mixing
2.Manual Gluing
3.Auto alarm for lack of material or full material
4.Gluing ratio and quantity adjustable
5.Auto cleaning
6.Glue tank Vacuum Defoaming (Optional)
7.Glue barrels,metering pump,glue pipe can be heating (Optional)

Suitable Material: For waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.
Applications:LED products ,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc

I.Machine description and working principle

Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.

II.Main Function:

1.Automatic metering and mixing

2.Manual Gluing

3.Auto alarm for lack of material or full material

4.Gluing ratio and quantity adjustable

5.Auto cleaning

6.Glue tank Vacuum Defoaming (Optional)

7.Glue barrels,metering pump,glue pipe can be heating (Optional)

III.Specification:

Model No:	PGB-700
Mixing Ratio	100:100-10:100(1:1-1:10) Adjustable
Metering precision	±1%
Outflow speed	1g/sec-15g/sec
Mixing precision	±1%
Mixing mode	Dynamic mixing /Static mixing
Glue Viscosity	Lower than 20000 CPS(mPa·s)
Control mode	PLC + Touch Screen
Control system	Independent R&D
Measuring mode	Stepping motor/High-precision, wear-resistant, long-life Gear pump
Working voltage	AC 220V 50Hz/60Hz
Power requirement	3.55KW
Air pressure requirement	4.5-8KG
Machine Dimension	1500(L)1200(W)1500(H)mm
Weight	approx 260 KG
Work environment	Humidity: 20%~98%RH; Temperature: 0~+40°c

Suitable Material: For waterproof, adhesive, fixed two-component adhesive.

Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.

Applications:LED products ,Crafts,Electronic components

Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc

IV:Application

V, packing
Metering Mixing and Dispensing Machine for PU Resin Dynamic Polyurethane Dosing System 2
