Customization High Precision Desktop Glue Dispenser SZD-300 with Pneumatic Gluing Mode
  • name
  • name
  • name
  • name
  • name

Customization High Precision Desktop Glue Dispenser SZD-300 with Pneumatic Gluing Mode

Details Information
Product Description
Detail Information
Model NO.:
SZD-300
Packaging:
Cartons
Working Range Xyz:
300*300*50mm
Repeat Accuracy:
+/-0.02mm
Display:
LCD
Operating Mode:
Push Button/Handheld Programmer
Moving Track:
DOT/Line/Curve/Arc/Circle
Dispensing Head:
Customize
N.W:
40kg
Transport Package:
Wooden Carton Lined With Foaming PE
Specification:
CE & SGS
Trademark:
Daheng Or OEM
Origin:
Guangzhou China
HS Code:
8424899990
Supply Ability:
50sets Per Month
Automatic Grade:
Automatic
Gluing Mode:
Pneumatic
Packaging Material:
Plastic Or Metal
Glue Type:
Epoxy, Silicone, PU & Other 1 Part
Application:
Machinery & Hardware
Driven Type:
Pneumatic
Customization:
Available | Customized Request
Highlight:

precision glue dispenser

,

precision glue dispensing equipment

,

high precision glue dispenser

Product Description

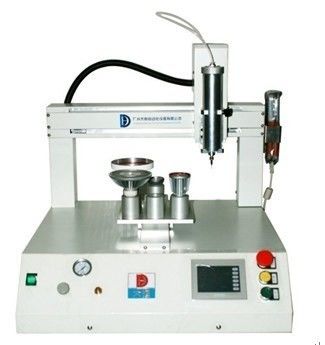

Desktop Gluing Dispenser (SZD-300)

1. Features
1) Easy operation
Touch screen, English interface, store data, alarm system.
2) High accuracy of glue control:
All key parts imported, with unique control system, no affected by air pressure, avoiding uneven gluing, glue drawing, deckle edge, etc.
3) Quick program editing
In the gluing control system, we can store 99 programs according to different models of the products which have different dispensing track. It's very easy to select one of the programs when dispensing.
   4) Simple adjustment for syringes:
Syringes can be adjusted in directions of up and down, left and right at a certain range, without change for the dispensing track.
   5) Great generality, high speed:
1, 2, 4 needles dispensing head are available to improve the speed, widely used in various fluid, industry, and graphics (dot, line, curve, arc and round etc.)

 2. Industrial Application
SMD, bulb lamp, COB binding, hand touch, TOP, dot matrix modules, circuit board, relay, cell phone and some other electric product with glue.
Customization High Precision Desktop Glue Dispenser SZD-300 with Pneumatic Gluing Mode 0



Model & Type:SZD-300 Desktop Gluing Dispenser
Certificate CE, SGS
Dimension L610 X W500 X H600mm
N.W. 40kg
XYZ Working Area 300x300x50mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
