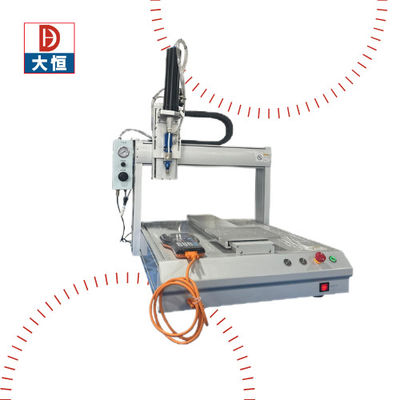

Vertical Installation 3 Axis Glue Dispenser Stable Automatic Glue Compounding Machine
  • name
  • name
  • name
  • name
  • name

Vertical Installation 3 Axis Glue Dispenser Stable Automatic Glue Compounding Machine

MOQ: 1
Price: 2998
Standard Packaging: Wooden Box Packing for Sea Shipment
Delivery Period: 15 Work days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
D&H
Certification
CE
Model Number
SZD-300
Model NO.:
SZD-300
Installation:
Vertical
Driven Type:
Electric
Transport Package:
Polywood Cases
Specification:
700x700x100
Trademark:
D&H
Origin:
China
HS Code:
8424899990
Supply Ability:
100
After-sales Service:
Provided
Precision:
High Precision
Condition:
New
Certification:
RoHS, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Customization:
Available | Customized Request
Highlight:

vertical glue dispenser

,

vertical silicone dispenser

,

ce glue dispenser

Product Description
Overview:

3-axis glue dispenser

Vertical Installation 3 Axis Glue Dispenser Stable Automatic Glue Compounding Machine 0



3 Axis Glue Dispenser
(1) Product feature:
1.1, Simple operation: Touch screen operation interface, which can record every data and give warning signal; We provide feasible fixtures to customer's products. A simple operation mode can save labor training time and cost. 1.2 Precision glue-out amount controlled: All key parts use imported parts, which can ensure high speed, and high precision and meet high dependability automatic production requirements. This machine with its unique controlling system, and is not affected by factors such as air pressure, can avoid glue from dividing evenly, wire drawing, and burrs.
1.3 Fast adjustable program: In the dispensing machine control system, which can save 99 or unlimited memories at the same time. Simply select the operation and quickly adapt to different workpieces; This machine system can automatically order direction reforming, automatic repeat path detection, automatic chamfering processing, and smoothing.
1.4 Easy to program: This machine issues the teaching programmer.
1.5 Machine easy to adjust: this machine can be in a certain range to meet the needs of different heights of the workpiece, and can ensure that at the time of changing needle cylinder, not need to readjust trajectory correction; the mechanical structure in three directions can be adjusted freely.
1.6, Versatility and fast speed: Optional 1,2,4 dispensing head to increase speed; this machine is widely used in all kinds of fluid, various industries, various graphics (Point, line, curve, and the combination of arbitrary points and lines)

3 Axis Glue Dispenser
Tech Data
Category
Parameter
Working range
X
400mm
Y
400mm
Z
100mm
Speed
X
250mm/s
Y
250mm/s
Z
250mm/s
Repeatability
X
±0.02mm
Y
±0.02mm
Z
±0.02mm
Dispensing accuracy
0.1ml
Weight
100kg
Power supply
AC220V 50Hz
Air source
0.4MPa---0.8MPa
Operating environment
Temperature 0~40ºC, Humidity 10~90%(non condensing)


Category
Configuration
Quantity
Frame
Aluminum profile/plate gold.

Y
400mm
Z
100mm
Three-axis moving platform
Transmission sliding device
3 SETS
Y
250mm/s
Z
250mm/s
stepping motor
3 PCS
Y
±0.02mm
Z
±0.02mm
Sindin BLDC MOTOR
2 SETS
Others
Fixture / multi nozzles
1 SET
Power supply
AC220V 50Hz
Air source
0.4MPa---0.8MPa
Operating environment
Temperature 0~40ºC, Humidity 10~90%(non condensing)


Customization:

Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component polyurethanes, epoxies, silicones, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.



D&H accepts a variety of customizations including size, number of tanks, temperature control, etc.

Please contact for more information!





About Us:

Vertical Installation 3 Axis Glue Dispenser Stable Automatic Glue Compounding Machine 3

Vertical Installation 3 Axis Glue Dispenser Stable Automatic Glue Compounding Machine 4Vertical Installation 3 Axis Glue Dispenser Stable Automatic Glue Compounding Machine 5Vertical Installation 3 Axis Glue Dispenser Stable Automatic Glue Compounding Machine 6
