5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump
  • name
  • name
  • name
  • name
  • name
  • name

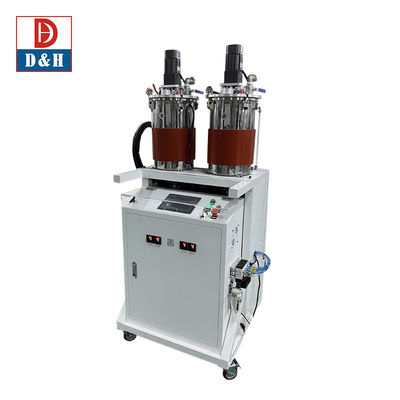

5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump

Price: $9,900.00/sets 1-1 sets
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Daheng
Model Number
PJL-800
Condition:
New
Weight (KG):
350
Showroom Location:
Turkey, Italy, India, Russia
Video Outgoing-inspection:
Yes
Machinery Test Report:
Yes
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Warranty:
1 Year
Name:
PU Ab Glue Mixing Dispensing Machinery Robot
XYZ Working Area:
1200 X 1200 X 100mm
Size:
L1960xw1550xh1600mm
Weight:
260kg
Mixing Ratio:
From 1:1 To 10:1(Adjustable)
Pump:
Daheng Patent Plunger Pump
Out-Gluing Rate:
5-66g/5s
Container Volume:
A:25L B:10L
Glue Dispenser:
Automatic Glue Dispenser
Dispensing System For Led Bar Light:
Glue Dispensing Machine
Highlight:

pu glue machine

,

automatic glue machine

,

pu glue dispensing machine

Product Description
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 0
Glue dispensing robot machine ab glue mix machine PU glue dispensing machine
Glue mixing machine
Brand: D&H
Model:PJL-800
Applications:led strips , rigid lights , stickers , cards , labels , false water vase ,glass and so on .
Suitable Material:Two-component liquid (AB),silicon, epoxy , Polyurethane .
Features
1. Accurately ratiomixing, fully automatic mix AB glue.
2. Mixing evenly .
3. Simple adjustable andeasylabor operation
4. Universal , widely use for Capacitance, reversing radar, circuit board and so on .
5. Memory function , self-cleaning , vacuuming , and Liquid level warning
6. More functions can be customized to meet up customers' special requirements.
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 1
Working principle&Functions &configurations :
Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually
from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Functions &configurations : automated feeding , heating , tank stirring , vacuum , dynamic/static mixing ,self-cleaning , self-discharging .

AB ratio: 100:100-100:10 adjustable
Movement Track: Dot/Line/Arc/Circle
Speed: 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy: ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program: 99pcs/more
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic and static optional, instant mixing, easy to clean
Tank：stainless steel(40L)、(25L)、（10L）optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater)
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 2
Parameter
Adjustable ratio
1 ：1 ---10：1
Flow control
 Digital input
Output speed
0.5g/s --24g/s base on ratio
Automatic control system
Touch screen/ trigger switch/third party signal
Parameter display
Pipe pressure , glue temperature and parameter can be transmitted to third party device through communication module
Viscosity
300cps~50000cps（reference value）
Mixed mode
Dynamic mixing (automatic detect function)
Operation mode
 Manual/automatic
Ratio control
PLC/Daheng pumps
Glue tank
Stainless tank A（40L）and stainless tank B(25L）, No machine stop when material feeding
Vacuum defoamation（-0.1MPa），4L/s
Liquid level sensor (low liquid level /high liquid level and limit liquid level)
Mixing accuracy
≤±2%
Voltage
220V/50Hz/1500W
Input air pressure
0.4MPa—0.7MPa
 Material
SPCC+Industrial aluminium+stainless +metal plate
About Company
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 3

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 4
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 5
Certifications
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 6

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 7
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 8
Exhibition
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 9
Packing & Delivery
5-66g/5s Out-Gluing Rate Robot Glue Dispensing Machine with Daheng Patent Plunger Pump 10
■  Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
