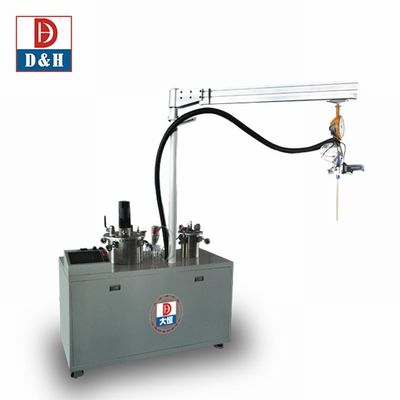

PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging
  • name
  • name
  • name
  • name
  • name
  • name

PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging

Price: $9,900.00/sets 1-1 sets
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
Daheng
Type:
Gluing Machine
Applicable Industries:
Manufacturing Plant
Showroom Location:
Turkey, Italy, Viet Nam, Indonesia, India, Mexico, Russia, Spain, Malaysia, Australia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Pump
Condition:
New
Application:
PU , EPOXY ,SILICONE
Packaging Type:
Poly-wood Case
Packaging Material:
Poly-wood Case
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
230V
Weight:
500 KG, 460kg
Warranty:
1 Year
Key Selling Points:
High Precision
Name:
2K Wooden Furniture Dispensing Machine
XYZ Working Area:
1200 X 1200 X 100mm
Mixing Ratio:
From 1:1 To 10:1(Adjustable)
Pump:
Daheng Patent Plunger Pump
Out-Gluing Rate:
5-66g/5s
Container Volume:
A:25L B:10L
Control System:
PLC
Tank Capacity:
10L ,25L , 40L Optional
Speed:
0.5-24g/s
Highlight:

epoxy glue potting machine

,

2k glue potting machine

,

2k epoxy potting machine

Product Description
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 0
Two part meter mix dispensing machine 10 meter dispensing head epoxy machine 2 part epoxy resin machine for wooden furniture
Glue mixing machine
Brand: D&H
Model:PJL-1200
Features
1. Accurately ratiomixing, fully automatic mix AB glue.
2. Mixing evenly .
3. Simple adjustable andeasylabor operation
4. Universal , widely use for Capacitance, reversing radar, circuit board and so on .
5. Memory function , self-cleaning , vacuuming , and Liquid level warning
6. More functions can be customized to meet up customers' special requirements.
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 1
Working principle&Functions &configurations :
Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually
from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Functions &configurations : automated feeding , heating , tank stirring , vacuum , dynamic/static mixing ,self-cleaning , self-discharging .

AB ratio: 100:100-100:10 adjustable
Movement Track: Dot/Line/Arc/Circle
Speed: 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy: ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program: 99pcs/more
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic and static optional, instant mixing, easy to clean
Tank：stainless steel(40L)、(25L)、（10L）optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater)
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 2
Applications ：

Wooden desk bonding , wooden parts gluing , Wooden furniture boding , and other wooden materials bonding , potting , dosing , dispensing application .
Parameter
Adjustable ratio
1 ：1 ---10：1
Flow control
 Digital input
Output speed
0.5g/s --24g/s base on ratio
Automatic control system
Touch screen/ trigger switch/third party signal
Parameter display
Pipe pressure , glue temperature and parameter can be transmitted to third party device through communication module
Viscosity
300cps~50000cps（reference value）
Mixed mode
Dynamic mixing (automatic detect function)
Operation mode
 Manual/automatic
Ratio control
PLC/Daheng pumps
Glue tank
Stainless tank A（40L）and stainless tank B(25L）, No machine stop when material feeding
Vacuum defoamation（-0.1MPa），4L/s
Liquid level sensor (low liquid level /high liquid level and limit liquid level)
Mixing accuracy
≤±2%
Voltage
220V/50Hz/1500W
Input air pressure
0.4MPa—0.7MPa
 Material
SPCC+Industrial aluminium+stainless +metal plate
About Company
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 3

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 4
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 5
Certifications
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 6

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 7
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 8
Exhibition
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 9
Packing & Delivery
PLC Controlled 10 Meter Dispensing Head Epoxy Machine for Wooden Furniture Packaging 10
■  Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
