Smart Epoxy Resin Ab Glue Filling Machine High Precision for Industrial Applications
  • name
  • name
  • name
  • name
  • name
  • name

Smart Epoxy Resin Ab Glue Filling Machine High Precision for Industrial Applications

Details Information
Product Description
Detail Information
Model NO.:
PGB-700
Driven Type:
Electric
Transport Package:
Poly Wood Case
Specification:
700x700x80
Trademark:
Daheng
Origin:
China
HS Code:
8424899990
Supply Ability:
600
Precision:
High Precision
Condition:
New
Certification:
CCC, PSE, FDA, RoHS, ISO, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

epoxy glue dispensing machine

,

epoxy meter mix dispensing machine

,

ab glue dispensing machine

Product Description

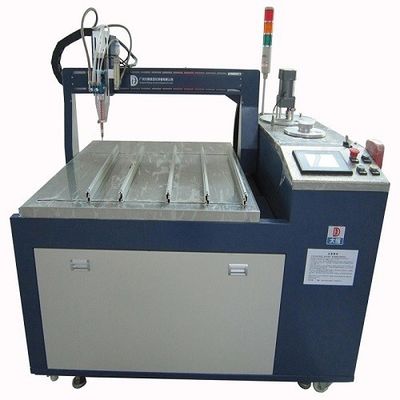

Smart epoxy resin AB glue filling machine

PGB-700
Strong versatility
Multiple configuration
High production capacity
High precision


Model: PGB-700
Dimension: 1500*1100*1600mm
XYZ working area: 700*700*100mm

AB ratio: 100:100-100:10 adjustable
Movement Track: Dot/Line/Arc/Circle
Speed: 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy: ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program: 99pcs/more
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic and static optional, instant mixing, easy to clean
Tank:stainless steel(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater)



Glue Potting Machine PGB-700

Category: Glue Potting Machine
Brand: D&H
Model:PGB-700
Applications: capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, art stickers , other electronic products where glue potting demanded.
Suitable Material: AB part glue , silicone , epoxy resin, polyurethane ...
 Smart Epoxy Resin Ab Glue Filling Machine


Features

1, Glue controlling system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid the waste of glue.
3, Dispensing size and positioning keep machine work consistent and fast.
4, Good universality makes PGB-700 machine suitable for applications of LED, electric and others glue potting needed products.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.

The working principle:



Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
