| Price: | $11,900.00/pieces 1-1 pieces |
| Standard Packaging: | Standard export poly-wood case |
| Supply Capacity: | 50 Piece/Pieces per Month MOQ=1PCS |

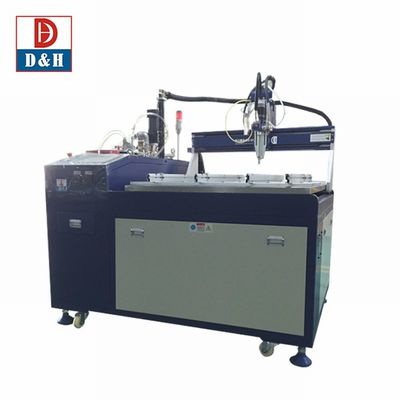

2K polyurethane potting machine mixing machine epoxies glue dot applicator machine
1)Machine details:
2 ) AB potting machine is composed of Five Systems:
1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
Strong versatility / Multiple configuration / High production capacity / High precision
1,Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
2,Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
3,Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
4,Vacuum : A &B tank vacuum for degas the bubble inside material .
5,Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
4)Advantages:
1,Accurated metering and even mixing helps to avoid the waste of material.
2,Dispensing volume and positioning keep machine work consistent and fast.
3,Good universality
4,Easy to program and operate.
5,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
5)Teach Data :
| AB ratio: | 100:100-100:10 adjustable |
| Movement Track: | Dot/Line/Arc/Circle |
| Speed: | 300mm/s (Movement speed) |
| Accuracy: | ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing) |
| Program: | 99pcs/999pcs |
| Input pressure: | 0.5MPa-0.7MPa |
| Viscosity: | 50cps-30000cps (Material can be heated to decrease viscosities) |
| Operation Method: | Manual/Automatic |
| Meter Pump: | Gear pump/Screw pump/Double cylinder plunger pump |
| Flow Control: | Digital Input |
| Programming method: | Teaching programming |
| Automated Control system: | PLC / touch screen (programming, modification, storage, etc.) |
| Glue control system: | AB glue suction valve to achieve independent operation of AB glue |
| Mixed mode: | Dynamic and static optional, instant mixing, easy to clean |
| Tank: | Stainless steel(40L),(25L),(10L)optional |
| Power supply: | 220V/50Hz/1200W ( The power consumption without heater) |
6)Electronic Appliances
7)Suitable Material
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
8)Machine description and working principle
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
9)Company Profile
Guangzhou Daheng Automation Equipment CO., Ltd is specialized in the R&D and sale of glue metering, mixing and dispensing machinery.
We believe in “the creation improves future”. Core technology is the only true creation. The e core of all the liquid controlling device is its metering and mixing system. Daheng, always taking its continuous efforts in the new technology, new products and new working process, created its unique tech “double- cylinder pump”, which is a liquid control system of high precision, changeable, continuous and long span time, and can be applied with glues of different viscosity. The core technology makes us the first pioneer in the gluing machine industry which passed CE certificate, SGS. We have over 20 patents, many original products and many “first” in the industry.
Including the standard machines we already have, we also accept customized services. We,headed in Guangzhou, and branched in Zhongshan, Shenzhen, Shanghai, and exported into Russia, Turkey, Netherland, Singapore, Indonesia and so on. We provide the on-going train-up for customers, 24 hours x 7 days service, and keep ourselves being improved on and on.
The current and great development of Daheng depends on your support and trust. We will keep ourselves making long effort in the industry and products. We will keep improved in the cylinder pump and precision valve, and keep the leading among our competitors.
