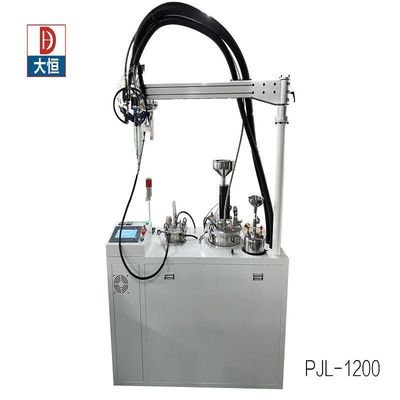

Semiautomatic PJL-1200 Ab Dispensing and Potting System for Industrial Applications
  • name
  • name
  • name
  • name
  • name
  • name

Semiautomatic PJL-1200 Ab Dispensing and Potting System for Industrial Applications

Details Information
Product Description
Detail Information
Model NO.:
PJL-1200
Installation:
Vertical
Driven Type:
Electric
Key Words:
Semi-Automatic Dispensing Machines
Functions:
Heating ,Stirring , Degas , Vacuuming , Self-Clean
Voltage:
220 Or 380V
Tank Compacity:
10L , 25L , 40L Or Customize
Transport Package:
Standard Export Poly Wood Case
Trademark:
Daheng
Origin:
China
HS Code:
8424899990
Supply Ability:
1000/Year
After-sales Service:
Provided
Precision:
High Precision
Condition:
New
Certification:
CE
Warranty:
12 Months
Automatic Grade:
Semiautomatic
Customization:
Available | Customized Request
Highlight:

ab glue dispensing machine

,

ab meter mix dispensing machine

,

10l glue dispensing machine

Product Description
PJL-11200 Economy glue potting machine
Ab Dispensing and Potting System
Features
Small size and easy to install
Easy to operate, easy to learn
Multiple configuration, suitable for a variety of products


PJL-1500 Glue mixing machine
Features
Stainless steel table
Suitable for multiple scenes
Free to control, easy to learn

PJL-1200 Standard dispensing machine
Multiple configuration, suitable for a variety of products
High versatility and high cost performance
Suitable for various products
Can be used with production lines
PJL-1000
Dimension: 1050*1000*1700mm
PJL-1500
Dimension: 1500*1000*1700MM
PJL-1200
Dimension: 1650*750*1900MM

AB ratio:100:100-100:10 adjustable
Movment Track:Dot/Line/Arc/Circle
Speed:500mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy: ±2%(potting) ±2%(mixing)
Input pressure:0.5MPa-0.7MPa
Viscosity:50cps-30000cps(Viscosity can be down via heating glue)
Operation:Manual/Automatic
Meter Pump:Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic static optional, instant mixing, easy to clean
Tank:stainless steel tank (60L),(50L),(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( Test under heating unction is not power on)
