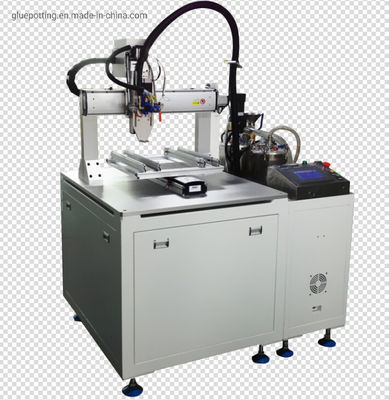

Vertical Automatic LED Display Glue Dispensing Machine For Large Scale Manufacturing

Details Information

Product Description

Detail Information

Model NO.:

PGB-700

Driven Type:

Electric

Transport Package:

Wooden Packing

Trademark:

D&H

Origin:

China

HS Code:

8424899990

Supply Ability:

50PCS Per Month

Precision:

High Precision

Condition:

New

Certification:

Warranty:

12 Months

Automatic Grade:

Semiautomatic

Installation:

Vertical

Customization:

Available | Customized Request

Highlight:

led display glue dispensing machine

vertical glue pouring machine

vertical glue dispensing machine

Product Description

Automatic LED display glue dispensing machine

I.Machine description and working principle

Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.

II.Main Function:

1.Automatic metering and mixing

2.Manual Gluing

3.Auto alarm for lack of material or full material

4.Gluing ratio and quantity adjustable

5.Auto cleaning

6.Glue tank Vacuum Defoaming (Optional)

7.Glue barrels,metering pump,glue pipe can be heating (Optional)

III.Specification:

Model No:	PJL-100
Mixing Ratio	100:100-10:100(1:1-1:10) Adjustable
Metering precision	±1%
Outflow speed	1g/sec-15g/sec
Mixing precision	±1%
Mixing mode	Dynamic mixing /Static mixing
Glue Viscosity	Lower than 20000 CPS(mPa·s)
Control mode	PLC + Touch Screen
Control system	Independent R&D
Measuring mode	Stepping motor/High-precision, wear-resistant, long-life Gear pump
Working voltage	AC 220V 50Hz/60Hz
Power requirement	3.55KW
Air pressure requirement	4.5-8KG
Machine Dimension	1500(L)1200(W)1500(H)mm
Weight	approx 260 KG
Work environment	Humidity: 20%~98%RH; Temperature: 0~+40°c

Suitable Material: For waterproof, adhesive, fixed two-component adhesive.

Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.

Applications:LED products ,Crafts,Electronic components

Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter .etc

IV:Application

V, packing
Automatic LED Display Glue Dispensing Machine
