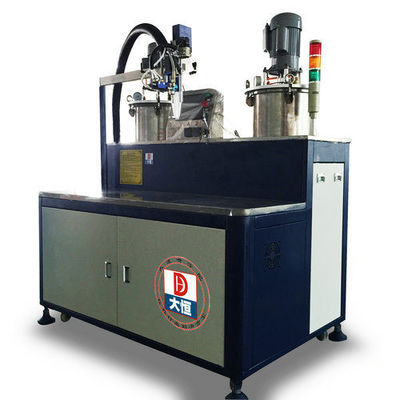

Semiautomatic UV Glue Dispenser Vertical Installation and Maintenance
  • name

Semiautomatic UV Glue Dispenser Vertical Installation and Maintenance

Details Information
Product Description
Detail Information
Driven Type:
Electric
Transport Package:
Wooden Packing
Trademark:
D&H
Origin:
China
HS Code:
8424899990
Supply Ability:
50PCS Per Month
Precision:
High Precision
Condition:
New
Certification:
CE
Warranty:
12 Months
Automatic Grade:
Semiautomatic
Installation:
Vertical
Customization:
Available | Customized Request
Highlight:

vertical glue potting machine

,

vertical epoxy potting machine

,

vertical installation glue potting machine

Product Description

I.Machine description and working principle

Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.

II.Main Function:

1.Automatic metering and mixing

2.Manual Gluing

3.Auto alarm for lack of material or full material

4.Gluing ratio and quantity adjustable

5.Auto cleaning

6.Glue tank Vacuum Defoaming (Optional)

7.Glue barrels,metering pump,glue pipe can be heating (Optional)



III.Specification:

Model No:

 PJL-1200

Mixing Ratio

100:100-10:100(1:1-1:10) Adjustable

Metering precision

±1%

Outflow speed

1g/sec-15g/sec

Mixing precision

±1%

Mixing mode

Dynamic mixing /Static mixing

Glue Viscosity

Lower than 20000 CPS(mPa·s)

Control mode

PLC + Touch Screen

Control system

Independent R&D

Measuring mode

Stepping motor/High-precision, wear-resistant,

long-life Gear pump

Working voltage

AC 220V 50Hz/60Hz

Power requirement

3.55KW

Air pressure requirement

4.5-8KG

Machine Dimension

1500(L)*1200(W)*1500(H)mm

Weight

approx 260 KG

Work environment

Humidity: 20%~98%RH; Temperature: 0~+40°c



Suitable Material: For waterproof, adhesive, fixed two-component adhesive.

Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.

Applications:LED products ,Crafts,Electronic components

Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovol­taic inverter .etc

IV:Application

UV Glue Dispenser for LCD

UV Glue Dispenser for LCD


UV Glue Dispenser for LCD




UV Glue Dispenser for LCD
