Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine
  • name
  • name
  • name
  • name
  • name
  • name

Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine

Price: $9,900.00/sets 1-1 sets
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
Daheng
Type:
Gluing Machine
Applicable Industries:
Manufacturing Plant
Showroom Location:
Turkey, Italy, Viet Nam, Indonesia, India, Mexico, Russia, Spain, Malaysia, Australia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Pump
Condition:
New
Application:
PU , EPOXY ,SILICONE
Packaging Type:
Poly-wood Case
Packaging Material:
Poly-wood Case
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
230V
Weight:
500 KG, 460kg
Warranty:
1 Year
Key Selling Points:
High Precision
Key Words:
Silicone Rubber Thermal Conductive Adhesive Dispenser
XYZ Working Area:
1200 X 1200 X 100mm
Mixing Ratio:
From 1:1 To 10:1(Adjustable)
Pump:
Daheng Patent Plunger Pump
Out-Gluing Rate:
5-66g/5s
Container Volume:
A:25L B:10L
Control System:
PLC
Tank Capacity:
10L ,25L , 40L Optional
Speed:
0.5-24g/s
Highlight:

silicone glue dispensing machine

,

silicone meter mix dispensing machine

,

ab glue dispensing machine

Product Description
Machine Description

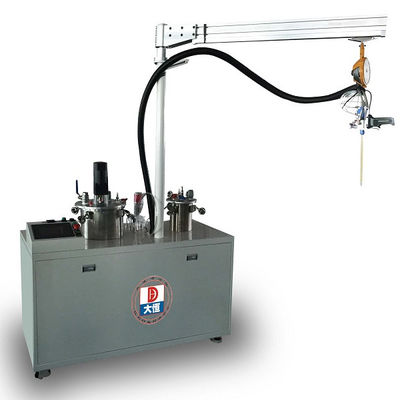

Silicone Rubber Thermal Conductive Adhesive dispenser

DOUBLE COMPONENT POTTING SYSTEM


We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine 0
Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine 1
Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine 2
Potting is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed.
We offer 2K AB adhesive materials manual potting machine and robot potting machine

1. Vacuum material-feeding system or diaphragm pump feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
Features&Functions
Strong versatility / Multiple configuration / High production capacity / High precision
* Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
700*700*100mm
Displacement speed
200mm/s（speed）
Out-glue speed
1-12g/s
Accuracy
±2%（output volume）±2%（mixing）
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming
With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W
Air source
0.5-0.8Mpa
Viscosity range
50-20000cps
Outer dimension
1500L*1200W*1600H mm
A tank
25L stainless tank（optional）
B tank
10L stainless tank（optional）
Others
AB tank 、A pump、AB pipeline heating function
Application
Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine 3
1. Potting&Casting:
electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace...
2. Dispensing&Dosing:
LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....
3. Bonding&doming:
LCD screen ,LOCA bonding，ABS plastic, different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
Applicable Materials
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.

Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine 4
Factory Overview
Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine 5
Silicone Rubber Thermal Conductive Adhesive Dispenser AB Glue Potting Compounds Machine 6
