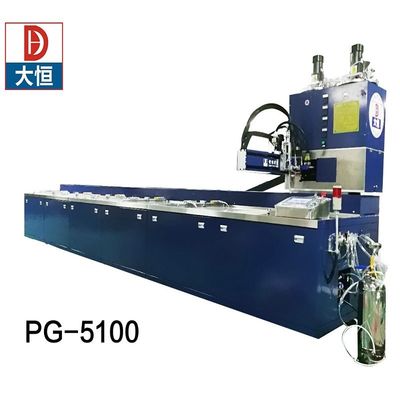

Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area
  • name
  • name
  • name
  • name
  • name
  • name

Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area

Price: $25,000.00/pieces 1-1 pieces
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
D&H
Type:
Gluing Machine
Applicable Industries:
Manufacturing Plant
Showroom Location:
Turkey, Italy, Viet Nam, Indonesia, Russia, Malaysia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Condition:
New
Application:
Machinery & Hardware
Packaging Type:
Case
Packaging Material:
Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Weight:
500 KG
Warranty:
1 Year
Key Selling Points:
High Precision
Product Name:
Adhesive Dispenser
Function:
AB Epoxy Mixing&stirring
Speed:
0-200mm/s
Metering Precision:
±2%
Tank Capacity:
10L,25L,40L,60L,customized
Glue Type:
Two Component
Heating:
Available
Self-cleaning:
Available
Mixing Ratio:
1:1--10:1 Adjustable
Working Area:
200x200x100mm
Highlight:

3 axis automatic glue dispenser

,

automatic automated glue dispenser

,

3 axis automated glue dispenser

Product Description
Product Overview

cnc 3 axis automatic glue dispenser auto epoxy machine potting equipment

I Machine demand description
Electronics are increasingly present in our lives,these technologies all use a wide array
of components – sensors, actuators, central processing units (CPUs), printed circuit boards (PCB), etc. – that need to be protected against environmental factors such as dust and moisture, as well as fluids and heat and fire exposure. Our 2 component application equipment is the the good machine for potting and encapsulating vary parts and products, which apply different production processes required metering , mixing , dosing , dispensing and potting with high accuracy and high efficiency .

II Metering working Principle
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with
each other in the mixer pipe and dispensed out according to the programmable data .


III Features and Benefits:
1. The glue potting system are for AB component materials for metering, mixing and potting .
2. Accurated metering and evenly mixing helps to avoid possible waste of glue.
3. Dispensing size and positioning keep consistently and fastly.
4. Good universality makes our machine suitable for applications of LED, electric and others glue potting and dispensing needed.
5. Easy to program and operate.
6.Fast metering & mixing and running speed keep potting with high efficiency.
7. Tally function, non-standard mode, tank level alert, filter mode, liquid display device, preventing backflow device and other functional device.

IV Machine functions：
* Mixing ratio ：100:100-100:10 adjustable . Dynamic or static mixing mode are optional .
* Tank liquid level sensor ：Tank liquid level alarm helps remind glue level line in tank and supplement materials immediately.
* Vacuum filling：The machine can automatically feeding material by using of the negative pressure of AB vacuum tank .
* Vacuum degas：Vacuum defoaming can remove the bubbles contained in the material,and this degas system can satisfy different fluid mixing and potting .
* Heating：Heating helps glue, especially PU and epoxy, to quickly reduce viscosity in cold weather, increase flow speed, and improve glue filling efficiency.
* Self-cleaning ：Automatic cleaning can quickly clean the mixing tube and prevent the mixture from solidifying
* Self-discharging：Automatic discharging can discharge the mixture that is about to be solidified in time to prevent the mixture from solidifying in the mixing tube.

Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 0
Application：
Auto parts , Reverse Sensor, Electronic Circuit Board, Electronic Ballast，air Filters, LED products ,Electronic components,Crafts，Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box,Power module,Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter and so on .
FEATURES AT A GLANCE
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 1
Front elevation
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 2
down elevation
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 3
side elevation
PRODUCT CONFIGURATION
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
200*200*100mm
Displacement speed
200mm/s（speed）
Out-glue speed
1-12g/s
Accuracy
±2%（output volume）±2%（mixing）
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming
With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W
Air source
0.5-0.8Mpa
Viscosity range
50-20000cps
Outer dimension
1500L*1200W*1600H mm
A tank
25L stainless tank（optional）
B tank
10L stainless tank（optional）
Others
AB tank 、A pump、AB pipeline heating function
Successful Project
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 4
marketing activities oversea
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 5
Project in India
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 6
Project in Russia
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 7
Suitable materials ：
Two component silicones ,polyurethane,epoxies,two part compound,AB compound,Bi-compound
other potting dispensing adhesive .
About Company
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 8

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 9
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 10
Certifications
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 11

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 12
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 13
Exhibition
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 14
Packing & Delivery
Potting Equipment Heating 3 Axis Automatic Glue Dispenser 200x200x100mm Working Area 15
■  Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
