Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal
  • name
  • name
  • name
  • name
  • name
  • name

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal

Price: $8,000.00/sets >=1 sets
Standard Packaging: wooden box packing for sea shipment
Supply Capacity: 100 Piece/Pieces per Month
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
DH
Model Number
PJL-1200
Condition:
New
Weight (KG):
450
Showroom Location:
Turkey, Italy, Viet Nam, Philippines, Russia, Thailand
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor, Pump
Warranty:
1 Year
Name:
Automatic Epoxy Resin Dispensing Machine With Foot Pedal
A:B Ratio:
1:1 - 10:1 Optional
Mixing Method::
Static / Dynamix Optional
Metering Pump:
Gear Pump Or D&H Patented Plunger Pump
Output Speed:
2-125g/5s Adjustable
Precision:
+/-1%
Tank Capacity:
10L, 25L, 40L, 60L Optional
Dimension:
L1640mm*W750*H1900
Port:
Guangzhou
Highlight:

epoxy dispensing machine

,

epoxy glue injection machine

,

10l dispensing machine

Product Description
Product description

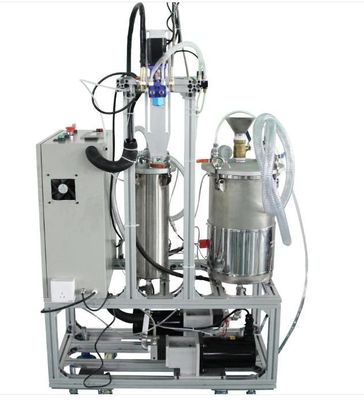

Epoxy PU silicone Automatic Epoxy Resin Dispensing Machine with foot pedal handheld glue gun epoxy resin machine


Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 0

Epoxy PU silicone two parts glue manual dispensing machine

PJL-1200 system accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting, gasketing, sealing, encapsulation and syringe filling. For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
The system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring and mixing tube. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and pump;

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 1
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 2
Specification Epoxy PU silicone two parts glue manual dispensing machine
Mixing Method:
Dynamic or Static, optional;
Repeatability:
±1%
Mixing Accuracy:
±1%
Tank Capacity:
10L/25L/40L/60L or Customized
Mixing Ratio:
1:1 - 1:10 adjustable
Gluing Speed:
5-66g/5s adjustable;
Air Pressure:
0.5-0.7Mpa
Power Input:
AC220V 50-60Hz or Customized
Dimension:
1500*1200*1500mm
Weight:
260KGS

Applications

Epoxy PU silicone two parts glue manual dispensing machine

1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 3

Machine features:

Epoxy PU silicone two parts glue manual dispensing machine

1. Automatic metering and mixing, touch screen PLC control system, English operation interface allow easy to set parameters;


2. Big LCD screen displays various processing data;

3. Easy programming of dots, stripes, arcs, compound arcs and patterns on different planes;

4. Gluing speed and timing can be set;

5. CAD file can be imported and turned to be dispensing patterns, and downloaded via USB; (optional function)

6. Mixing ratio 1:1-1:10 and gluing volume can be set and adjusted as per actual need. Dynamic mixing ensure two component glue to be mixed to a fully homogeneous consistency;

7. Metering, mixing and gluing simultaneously;

8. Two tanks keep A glue and B glue separately;

9. Liquid level sensor, alarm function;

10. Tank stirring and vacuum defoaming function optional;

11. Auto cleaning; The cleaning mode can be manually or automatically, manual mode just remove the mixing tube then soak into cleaning agent, after 10 min take out and clean with compressed air, Automatic mode only need to operate the cleaning switch on touch screen within 1 minute to complete;

12. Glue tank/metering pump/glue pipe heating function (optional);

13. Vacuum control keeps thin fluids from dripping;

14. Unique control system which will not influenced by air pressure factor, ensures optimal dispensing performance;

Machine details
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 4

Panasonic PLC.

High precision Panasonic PLC ensure high stably performance and precisely AB glue output quantity

Dynamic mixing.

High speed mixing motor, mixing glue well. According to glue features, static mixing is available

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 5
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 6

Vacuum tank with stirring motor.

With defoaming function and mixing motor, no bubbles in glue, pre-heating is available for selection

Tank with liquid sensor.

Both AB tank with high level and low level liquid sensor, when the glue is not enough or the machine is abnormal, the machine will show the warning message. Humanized engineering design, avoid the serious damages. There's a professional sealing ring to make sure the glue tank in vacuum status. To avoid the glue to be crystallization or curved.

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 7
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 8

Vacuum tank.

vacuum tank with auto glue filling function

Certifications
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 9
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 10
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 11
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 12
Our Service
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 13

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 14

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 15
Packaging
Size
150CM(L) * 110CM (W) * 170CM (D)
Weight
550KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). The wooden box will be fumigated. We will use pe film for packing or pack it according to customers special request.
Other machines
Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 16

PGB-200

Small automatic Glue dispensing machine with working area: L480mm*W480mm*H80mm

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 17

QPD-300

Glue dispenser for LED bulbs with 3 heads

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 18

SZD-700

One component glue dispensing machine with working area: L700mm*W700mm*H80mm

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 19

PJL-1500

Automatic glue mixing machine, manual glue dispenser

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 20

PGB-1200

automatic Glue dispensing machine with working area: L1200mm*W1200mm*H80mm

Static/Dynamic Mixing Method Automatic Epoxy Resin Dispensing Machine with Foot Pedal 21

PJL-1200

Automatic glue mixing machine, manual glue dispenser, with long pipe
