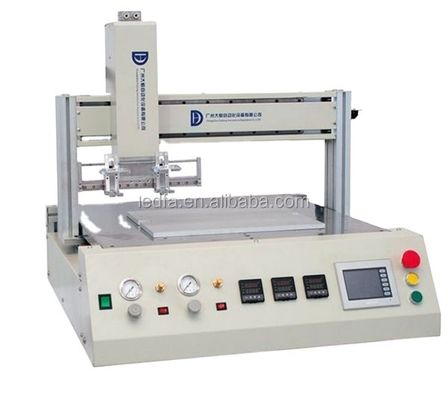

High Speed Gluing Sealing Machine SZD-400 For Production
  • name
  • name
  • name
  • name

High Speed Gluing Sealing Machine SZD-400 For Production

Price: $380.00/sets >=1 sets
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
daheng
Type:
Gluing Machine
Applicable Industries:
Manufacturing Plant
Showroom Location:
Turkey, Viet Nam, Philippines, Peru, Indonesia, Pakistan, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Kazakhstan
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC
Condition:
New
Application:
Machinery & Hardware
Packaging Type:
Cartons
Packaging Material:
Wood
Automatic Grade:
Semi-automatic
Driven Type:
Pneumatic
Voltage:
AC220V Or AC 380V
Dimension(L*W*H):
400*400*50mm
Weight:
40 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Definition:
Gluing Sealing Machine
Working Range Xyz:
400*400*50mm
Repeat Accuracy:
+/-0.02mm
Display:
LCD
Operating Mode:
Push Button/Handheld Programmer
Moving Track:
DOT/Line/Curve/Arc/Circle
Dispensing Head:
Customize
N.W:
40kg
Highlight:

High Speed dispensing equipment

,

Semi automatic dispensing equipment

,

automatic glue dispenser

Product Description

Desktop Gluing Dispenser (SZY-400)
1. Features

1) Easy operation
Touch screen, English interface, store data, alarm system.

2) High accuracy of glue control:
All key parts imported, with unique control system, no affected by air pressure, avoiding uneven gluing, glue drawing, deckle edge, etc.

3)Quick program editing
In the gluing control system, we can store 99 programs according to different models of the products which have different dispensing track. It's very easy to select one of the programs when dispensing.

4) Simple adjustment for syringes:
Syringes can be adjusted in directions of up and down, left and right at a certain range, without change for the dispensing track.

5) generality, high speed:

1, 2, 4 needles dispensing head are available to improve the speed, widely used in various fluid, industry, and graphics (dot, line, curve, arc and round etc.)


 2. Industrial Application
SMD, bulb lamp, COB binding, hand touch, TOP, dot matrix modules, circuit board, relay, cell phone and some other electric product with glue.



Model & Type:SZD-200 Desktop Gluing Dispenser
Certificate CE, SGS
Dimension L610 X W500 X H600mm
N.W. 40kg
XYZ Working Area 400x400x50mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V






High Speed Gluing Sealing Machine SZD-400 For Production 0

High Speed Gluing Sealing Machine SZD-400 For Production 1High Speed Gluing Sealing Machine SZD-400 For Production 2
