Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure
  • name
  • name
  • name
  • name
  • name
  • name

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure

MOQ: 1
Price: $48,000.00/sets 1-1 sets
Standard Packaging: Wooden Box Packing for Sea Shipment
Delivery Period: 10 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100 Unit/Units per Month
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
Daheng
Certification
CE
Model Number
VGB600S
Keywords:
Vacuum Dosing Systems For The Highly Precise Potting Of Electronic Components Under Vacuum Pressure
Applicable Industries:
Manufacturing Plant
Showroom Location:
Egypt, Turkey, Italy, Viet Nam, Russia, Malaysia, Australia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Bearing, Motor, Pump
Condition:
New
Application:
Chemical
Packaging Type:
Polywood Case
Packaging Material:
Plastic, Metal, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
230V
Weight:
800 KG, 800kg
Warranty:
1 Year
Key Selling Points:
High-accuracy
Definition:
Vacuum Chamber Potting Epoxy Machine
XYZ Working Area:
1200x1200mm Customized
Size:
1600mm*1200mm*1500mm
Mixing Ratio:
From 1:1 To 10:1(Adjustable)
Stiring Method:
Static Or Dynamic
Pump:
Daheng Patent Plunger Pump
Out-Gluing Rate:
5-66g/5s
Mixing Precision:
+/-1%
Container Volume:
A:25L B:10L
Port:
Guangzhou/Shenzhen
Highlight:

vacuum potting machine

,

electronic potting machine

,

electronic vacuum potting casting machine

Product Description
Why Choose Us

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure



We offer a wide range of advanced dispensing solutions, including CCD Vision dispensing systems, AB glue machines, 2-part silicone, polyurethane, and epoxy potting dispensing machines, AB resins compound dosing and dispensing potting systems, 2K potting technology, and AB glue dispensing machines. Our product lineup also includes epoxy dispensing machines, two-component dispensing machines, dual-component dispensing machines, AB dosing system machines, glue dropping machines, glue filling machines, meter-mix dispensing machines, resin dispensing machines, vacuum potting casting system machines, adhesive dispensing systems, dispensing robots with high precision, dispensing valves, AB liquid dispensers, and automated dispensing equipment. We provide solutions for automatic glue dispensing, meter mixing machines, 2K dispensers, 2K DOS machines, 2-part silicones, polyurethane epoxy dispensing potting filling machines, AB epoxy resins compound spraying filling dispensers, two-component AB epoxies, PU and silicones metering mixing systems, 2K dosing units, AB-part dosers, 2K resins metering mixing machines, meter-mix dispensing systems, resin dispensing, adhesive dispensing technology, high-precision and accuracy dispensing robots, dispensing valve units, and automated AB glue dispenser equipment, as well as dynamic and static mixing systems.

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 0

Electronics are increasingly present in our lives, these technologies all use a wide array of components -sensors, actuators,central processing units (CPUs), printed circuit boards (PCB), electronics componnets , Capacitor, power supply, transformer,ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....etc. - that need to be protected against environmental factors such as dust and moisture, as well as fluids and heat and
fire exposure.

Advanced Solutions in Dispensing and Potting Equipment

In today's rapidly evolving manufacturing landscape, precision, efficiency, and reliability are paramount. As industries demand higher standards and more complex applications, the need for advanced dispensing and potting equipment becomes increasingly crucial. Enterprising companies are turning to cutting-edge solutions to meet these demands, leveraging technologies such as CCD vision systems and dual-component dispensing machines to stay ahead of the curve.

CCD Vision Dispensing Systems: Revolutionizing accuracy and quality control, CCD vision dispensing systems integrate advanced imaging technology with precision dispensing capabilities. By providing real-time visual feedback and ensuring precise placement of materials, these systems optimize production processes and minimize waste.

AB Glue Machines: Versatile and robust, AB glue machines are the workhorses of adhesive application. Whether it's two-part silicone, polyurethane, or epoxy, these machines excel in metering, mixing, and dispensing a wide range of materials. With customizable configurations and automated features, they streamline production workflows and enhance product consistency.

2K Potting Technology: For applications requiring superior encapsulation and protection, 2K potting technology delivers unmatched performance. By combining two components precisely at the point of dispensing, this technology ensures thorough mixing and homogeneity, resulting in durable and reliable potting solutions.

Automated Dispensing Equipment: Embracing the era of Industry 4.0, automated dispensing equipment integrates seamlessly into smart manufacturing environments. Equipped with high-precision dispensing valves and robotic arms, these systems offer unparalleled efficiency and repeatability, optimizing production throughput and reducing labor costs.

Dynamic and Static Mixing Systems: Catering to diverse application requirements, dynamic and static mixing systems provide flexible solutions for a variety of materials. Whether it's high-viscosity adhesives or low-viscosity resins, these systems deliver precise mixing ratios and consistent results, ensuring optimal performance in every application.

Metering, Pouring, and Filling Equipment: From meter-mix dispensing machines to resin casting systems, the versatility of modern dispensing equipment knows no bounds. Whether it's sealing, filling, or casting, these machines offer precise control over material flow and dispensing parameters, empowering manufacturers to tackle even the most challenging applications with confidence. In conclusion, the landscape of dispensing and potting equipment is evolving rapidly, driven by advancements in technology and the ever-increasing demands of modern manufacturing. By embracing innovative solutions such as CCD vision systems, automated dispensing equipment, and dynamic mixing systems, companies can unlock new levels of efficiency, precision, and reliability in their production processes. As industries continue to push the boundaries of innovation, the role of advanced dispensing equipment will only grow in importance, shaping the future of manufacturing for years to come.


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 1
Introduction :
1 Working Area: controlled by PLC module and MCGS touch screen.
2 High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3 Core technology pumps are designed specially for different materials from low to high viscosities
4 Mix glue A & B more evenly; no more or no less for agent B.


Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 2

Tank system technology:

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 3

  1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6.Tank with heating panel which can preheat materials to assure good flowability.
6 Tank with artificial feeding mouth that can be added glue appropriately by hand .
7 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 4

1 Two cylinder plunger pumps work by durable motors.
2 The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3 Also Suitable for high viscosity glue: 50cps~35000cps.
4 Suitable for big flow dispensing or slight flow dispensing.
5 Suitable for frequent start and stop dispensing.
6 Anti-wear, Anti-corrosion, super long life time.


Valve technology

1.Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.


Teach data



Glue ratio 1 :1 ---10:1
Ratio acurracy ±2%
Glue-out speed 0.5g/s --24g/s(Per single pump)
Glue-out accuracy ±2%
Program memory 99pcs
Glue viscosity 50cps~35000cps(Reference data)
Opearation Mode Manual mode /Automatic mode
Ratio Control PLC/ Double plunger pump (Can change different type of metering pumps)
Flow Control Digital input
Parameter display Pointer / digital display
Automatic control system Touch screen / button switch/ third party signal
Mixing Method Static mixing / Automatic cleaning
Storage Tank Stainless steel A and B(10L,25L ,40L optional)
Stainless steel cleaning barrel C(5L)
Vacuum degas(-0.1MPa)
Liquid level sensor(Low liquid level/high liquid level)
A/B Tank stirring
AB glue constant temperature heating(available)
Glue filter
Power 220V/50Hz/5000W
Outer dimension Glue Potting Machine:995mm×600mm×1500mm
Frame Materials Cold rolled steel/industrial aluminum/stainless steel/sheet metal





Parameters



  Parameter Category Specification
Mixing ratio 1:1-10:1 Speed 0-250mm/s(displacement speed)
Working area Inner area:450x400x80mm,Dimension: 900x790x760mm
Program memory 99 pcs Precision ±0.1mm (accuracy of displacement)±2%(mixing accuracy)
Input air pressure 0.3MPa-0.8MPa
Viscosity range 50cps~30000cps Working path Dot, line , arc , circle
Operation mode JOG/AUTO
Control system PLC Auto control system Industrial touch screen program with programming modification, storage and so on
Flow control Digital input
Programming method Teaching programming Out-glue control system AB glue suck-back valve /vacuum suck back skill.
Mixing mode Dynamic
Power 380V/50Hz/1200W Storage system Stainless steel tanks A Tank: 40L & B Tank: 25L(10L,25L ,40L optional)
Vacuum degree -0.1MPa Vacuum time 90S(as per different requirement)



PLC controlling System


1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .

Application:


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 5

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....
3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 6


Applicable materials


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 7
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .


Service Term

1.Staff training
Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2.Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.

Workshop Cornner of factoryVacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 8


Shipping&delivery

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 9Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 10


Sucessful cases:

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 11
Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 12Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 13Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 14


Tags:

vacuum potting machine,

25l potting machine,

resin potting machine

Recommended Products
Energy Vacuum Casting Machine For Under Vacuum Potting And Casting Requirements

Energy Vacuum Casting Machine For Under Vacuum Potting And Casting Requirements

Contact Now
Plastic Packaging Vacuum Chamber Dispensing Potting Machine With And 1 1-10 1 Ratio

Plastic Packaging Vacuum Chamber Dispensing Potting Machine With And 1 1-10 1 Ratio

Contact Now
25L Tank Capacity Auto Cleaning 2K Vacuum Potting System For Epoxy Resin Dispensing

25L Tank Capacity Auto Cleaning 2K Vacuum Potting System For Epoxy Resin Dispensing

Contact Now
Automatic Vacuum Potting Two Component Potting Machine For Electronics

Automatic Vacuum Potting Two Component Potting Machine For Electronics

Contact Now
Polywood Case Vacuum AB Component Epoxy Potting Machine For Electric Motor Production Line

Polywood Case Vacuum AB Component Epoxy Potting Machine For Electric Motor Production Line

Contact Now
Vacuum Glue Potting Machine For Electronic Components Packaging

Vacuum Glue Potting Machine For Electronic Components Packaging

Contact Now
Silicone Vacuum Glue Potting Machine For Electronic Components

Silicone Vacuum Glue Potting Machine For Electronic Components

Contact Now
2K Vacuum Potting Machine With Vacuum Chamber And Conveyor In Epoxy Resins Dispensing

2K Vacuum Potting Machine With Vacuum Chamber And Conveyor In Epoxy Resins Dispensing

Contact Now
Patented Suction Valve 2K Vacuum Potting System For Silver Epoxy Resins Dispensing

Patented Suction Valve 2K Vacuum Potting System For Silver Epoxy Resins Dispensing

Contact Now
1 1-10 1 Ratio Gluing Machine For Vacuum Glue Potting Automatic

1 1-10 1 Ratio Gluing Machine For Vacuum Glue Potting Automatic

Contact Now
Motor And Stator Epoxy Resin Encapsulation Potting Machine With Two Component Adhesive

Motor And Stator Epoxy Resin Encapsulation Potting Machine With Two Component Adhesive

Contact Now
products
PRODUCTS DETAILS
Products

Glue Potting Machine

Glue Dispensing Machine

Glue Mixing Machine

Meter Mix Dispensing Machine

Vacuum Potting Casting Machine

CCD Vision Dispensing System

Glue Dispenser

Spraying Glue Machine

High Precision Dispensing Valve

Epoxy Doming Machine

PU Dispensing Machine
Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure
  • name
  • name
  • name
  • name
  • name
  • name
Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure
MOQ: 1
Price: $48,000.00/sets 1-1 sets
Standard Packaging: Wooden Box Packing for Sea Shipment
Delivery Period: 10 Work Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100 Unit/Units per Month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
Daheng
Certification
CE
Model Number
VGB600S
Keywords:
Vacuum Dosing Systems For The Highly Precise Potting Of Electronic Components Under Vacuum Pressure
Applicable Industries:
Manufacturing Plant
Showroom Location:
Egypt, Turkey, Italy, Viet Nam, Russia, Malaysia, Australia
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Bearing, Motor, Pump
Condition:
New
Application:
Chemical
Packaging Type:
Polywood Case
Packaging Material:
Plastic, Metal, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
230V
Weight:
800 KG, 800kg
Warranty:
1 Year
Key Selling Points:
High-accuracy
Definition:

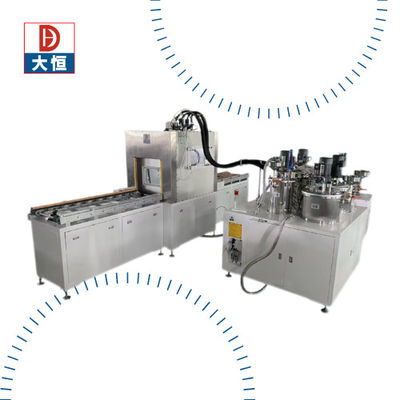

Vacuum Chamber Potting Epoxy Machine
XYZ Working Area:
1200x1200mm Customized
Size:
1600mm*1200mm*1500mm
Mixing Ratio:
From 1:1 To 10:1(Adjustable)
Stiring Method:
Static Or Dynamic
Pump:
Daheng Patent Plunger Pump
Out-Gluing Rate:
5-66g/5s
Mixing Precision:
+/-1%
Container Volume:
A:25L B:10L
Port:
Guangzhou/Shenzhen
Minimum Order Quantity:
1
Price:
$48,000.00/sets 1-1 sets
Packaging Details:
Wooden Box Packing for Sea Shipment
Delivery Time:
10 Work Days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
100 Unit/Units per Month
Highlight

vacuum potting machine

,

electronic potting machine

,

electronic vacuum potting casting machine

Product Description
Why Choose Us

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure



We offer a wide range of advanced dispensing solutions, including CCD Vision dispensing systems, AB glue machines, 2-part silicone, polyurethane, and epoxy potting dispensing machines, AB resins compound dosing and dispensing potting systems, 2K potting technology, and AB glue dispensing machines. Our product lineup also includes epoxy dispensing machines, two-component dispensing machines, dual-component dispensing machines, AB dosing system machines, glue dropping machines, glue filling machines, meter-mix dispensing machines, resin dispensing machines, vacuum potting casting system machines, adhesive dispensing systems, dispensing robots with high precision, dispensing valves, AB liquid dispensers, and automated dispensing equipment. We provide solutions for automatic glue dispensing, meter mixing machines, 2K dispensers, 2K DOS machines, 2-part silicones, polyurethane epoxy dispensing potting filling machines, AB epoxy resins compound spraying filling dispensers, two-component AB epoxies, PU and silicones metering mixing systems, 2K dosing units, AB-part dosers, 2K resins metering mixing machines, meter-mix dispensing systems, resin dispensing, adhesive dispensing technology, high-precision and accuracy dispensing robots, dispensing valve units, and automated AB glue dispenser equipment, as well as dynamic and static mixing systems.

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 0

Electronics are increasingly present in our lives, these technologies all use a wide array of components -sensors, actuators,central processing units (CPUs), printed circuit boards (PCB), electronics componnets , Capacitor, power supply, transformer,ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....etc. - that need to be protected against environmental factors such as dust and moisture, as well as fluids and heat and
fire exposure.

Advanced Solutions in Dispensing and Potting Equipment

In today's rapidly evolving manufacturing landscape, precision, efficiency, and reliability are paramount. As industries demand higher standards and more complex applications, the need for advanced dispensing and potting equipment becomes increasingly crucial. Enterprising companies are turning to cutting-edge solutions to meet these demands, leveraging technologies such as CCD vision systems and dual-component dispensing machines to stay ahead of the curve.

CCD Vision Dispensing Systems: Revolutionizing accuracy and quality control, CCD vision dispensing systems integrate advanced imaging technology with precision dispensing capabilities. By providing real-time visual feedback and ensuring precise placement of materials, these systems optimize production processes and minimize waste.

AB Glue Machines: Versatile and robust, AB glue machines are the workhorses of adhesive application. Whether it's two-part silicone, polyurethane, or epoxy, these machines excel in metering, mixing, and dispensing a wide range of materials. With customizable configurations and automated features, they streamline production workflows and enhance product consistency.

2K Potting Technology: For applications requiring superior encapsulation and protection, 2K potting technology delivers unmatched performance. By combining two components precisely at the point of dispensing, this technology ensures thorough mixing and homogeneity, resulting in durable and reliable potting solutions.

Automated Dispensing Equipment: Embracing the era of Industry 4.0, automated dispensing equipment integrates seamlessly into smart manufacturing environments. Equipped with high-precision dispensing valves and robotic arms, these systems offer unparalleled efficiency and repeatability, optimizing production throughput and reducing labor costs.

Dynamic and Static Mixing Systems: Catering to diverse application requirements, dynamic and static mixing systems provide flexible solutions for a variety of materials. Whether it's high-viscosity adhesives or low-viscosity resins, these systems deliver precise mixing ratios and consistent results, ensuring optimal performance in every application.

Metering, Pouring, and Filling Equipment: From meter-mix dispensing machines to resin casting systems, the versatility of modern dispensing equipment knows no bounds. Whether it's sealing, filling, or casting, these machines offer precise control over material flow and dispensing parameters, empowering manufacturers to tackle even the most challenging applications with confidence. In conclusion, the landscape of dispensing and potting equipment is evolving rapidly, driven by advancements in technology and the ever-increasing demands of modern manufacturing. By embracing innovative solutions such as CCD vision systems, automated dispensing equipment, and dynamic mixing systems, companies can unlock new levels of efficiency, precision, and reliability in their production processes. As industries continue to push the boundaries of innovation, the role of advanced dispensing equipment will only grow in importance, shaping the future of manufacturing for years to come.


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 1
Introduction :
1 Working Area: controlled by PLC module and MCGS touch screen.
2 High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3 Core technology pumps are designed specially for different materials from low to high viscosities
4 Mix glue A & B more evenly; no more or no less for agent B.


Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 2

Tank system technology:

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 3

  1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6.Tank with heating panel which can preheat materials to assure good flowability.
6 Tank with artificial feeding mouth that can be added glue appropriately by hand .
7 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 4

1 Two cylinder plunger pumps work by durable motors.
2 The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3 Also Suitable for high viscosity glue: 50cps~35000cps.
4 Suitable for big flow dispensing or slight flow dispensing.
5 Suitable for frequent start and stop dispensing.
6 Anti-wear, Anti-corrosion, super long life time.


Valve technology

1.Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.


Teach data



Glue ratio 1 :1 ---10:1
Ratio acurracy ±2%
Glue-out speed 0.5g/s --24g/s(Per single pump)
Glue-out accuracy ±2%
Program memory 99pcs
Glue viscosity 50cps~35000cps(Reference data)
Opearation Mode Manual mode /Automatic mode
Ratio Control PLC/ Double plunger pump (Can change different type of metering pumps)
Flow Control Digital input
Parameter display Pointer / digital display
Automatic control system Touch screen / button switch/ third party signal
Mixing Method Static mixing / Automatic cleaning
Storage Tank Stainless steel A and B(10L,25L ,40L optional)
Stainless steel cleaning barrel C(5L)
Vacuum degas(-0.1MPa)
Liquid level sensor(Low liquid level/high liquid level)
A/B Tank stirring
AB glue constant temperature heating(available)
Glue filter
Power 220V/50Hz/5000W
Outer dimension Glue Potting Machine:995mm×600mm×1500mm
Frame Materials Cold rolled steel/industrial aluminum/stainless steel/sheet metal





Parameters



  Parameter Category Specification
Mixing ratio 1:1-10:1 Speed 0-250mm/s(displacement speed)
Working area Inner area:450x400x80mm,Dimension: 900x790x760mm
Program memory 99 pcs Precision ±0.1mm (accuracy of displacement)±2%(mixing accuracy)
Input air pressure 0.3MPa-0.8MPa
Viscosity range 50cps~30000cps Working path Dot, line , arc , circle
Operation mode JOG/AUTO
Control system PLC Auto control system Industrial touch screen program with programming modification, storage and so on
Flow control Digital input
Programming method Teaching programming Out-glue control system AB glue suck-back valve /vacuum suck back skill.
Mixing mode Dynamic
Power 380V/50Hz/1200W Storage system Stainless steel tanks A Tank: 40L & B Tank: 25L(10L,25L ,40L optional)
Vacuum degree -0.1MPa Vacuum time 90S(as per different requirement)



PLC controlling System


1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .

Application:


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 5

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....
3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 6


Applicable materials


Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 7
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .


Service Term

1.Staff training
Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2.Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.

Workshop Cornner of factoryVacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 8


Shipping&delivery

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 9Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 10


Sucessful cases:

Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 11
Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 12Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 13Vacuum Dosing Systems for the Highly Precise Potting of Electronic Components Under Vacuum Pressure 14


Tags:

vacuum potting machine,

25l potting machine,

resin potting machine

Guangzhou Zhengqi Technology Co., Ltd.
Room 402, 4th Floor, Building B3, Liandong U Valley Huangpu Science and Technology Headquarters Port, No. 9, Xicheng South Street, Huangpu District, Guangzhou City, Guangdong Province.
Tel: 18926136909
Sitemap |  Privacy Policy | China Good Quality Glue Potting Machine Supplier. Copyright © 2024-2025 Guangzhou Zhengqi Technology Co., Ltd. . All Rights Reserved.
