Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing
  • name
  • name
  • name
  • name
  • name
  • name

Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing

Price: $11,000.00/sets >=1 sets
Standard Packaging: Wooden carton
semi-automatic glue dispenser
Supply Capacity: 600 Set/Sets per Month semi-automatic glue dispenser
Details Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
D&H
Condition:
New
Weight (KG):
40
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
13 Months
Core Components:
PLC, Bearing, Gear, Pump
Warranty:
13 Months
Applicable Industries:
Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location:
Egypt, Turkey, Italy, Viet Nam, Philippines, Indonesia, Russia, Malaysia
Definition:
Glue Dispensing Equipment
Size:
L610 X W500 X H600mm
Weight:
40kg
Operate Mode:
Button Or Hand Terminal
Moving Track:
Dot,Line,Arc,Circle
Nozzle:
1~6 Heads Optional
Repetition Precision:
±0.02mm
Working Area:
300x300x100mm
Desktop Glue Dispenser:
High Precise Glue Dispenser
Three-Axis Glue Dispenser:
Semi Automatic Glue Machine
Port:
Guangzhou, Shenzhen
Highlight:

glue dispenser semi automatic

,

automatic glue dispenser

,

automatic silicone dispenser

Product Description

4 axis glue dispensing machine cnc glue dispenser machine Desktop Three-Axis Glue Dispenser SZD-300



4 axis glue dispensing machine cnc glue dispenser machine



Main Technical Data:

Model & Type: SZD-400 Desktop Gluing Dispenser
Certificate CE, SGS
Dimension L610 X W500 X H600mm
N.W. 40kg
XYZ Working Area 395x395x95 mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability ±0.02g
Accuracy ±1%
Power AC220V or AC 380V




Features and Benefits:

1) Easy operation
Touch screen, English interface, store data, alarm system.
2) High accuracy of glue control:
All key parts imported, with unique control system, no affected by air pressure, avoiding uneven gluing, glue drawing, deckle edge, etc.
3)Quick program editing
In the gluing control system, we can store 99 programs according to different models of the products which have different dispensing track. It's very easy to select one of the programs when dispensing.
4) Simple adjustment for syringes:
Syringes can be adjusted in directions of up and down, left and right at a certain range, without change for the dispensing track.
5) Great generality, high speed:
1, 2, 4 needles dispensing head are available to improve the speed, widely used in various fluid, industry, and graphics (dot, line, curve, arc and round etc.)



Products Pictures:

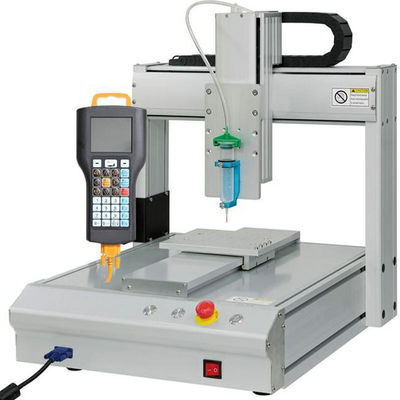

Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 0

Application:
SMD, bulb lamp, COB binding, hand touch, TOP, dot matrix modules, circuit board, relay, cell phone and some other electric product with glue.

Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 1Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 2Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 3



Certification:

Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 4Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 5Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 6Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 7







Factory Tour

Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 8Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 9Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 10Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 11Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 12Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 13





Parts of our Oversea Customers

Three-Axis Glue Dispenser Semi Automatic L610 X W500 X H600mm for Accurate Dispensing 14





WHO ARE WE & WHY CHOOSE US?



Guangzhou Daheng founded in 2006, is one of the leading manufactuers for gluing machines in China. We mainly provide fully automatic and semi automatic AB glue dispensing machine for various application.
We are headed in Guangzhou, have branches in Shenzhen, Shanghai, Beijing, Zhongshan, Xiamen; exported regularly to many coutries such as Thailand, Malaysia, Singapore, Turkey, Dubai, India, Netherland, Ukraine, Russia, etc. Based on years of customers experience, we built up very complete and helpful sales service.









Tags:

ce glue dispenser,

automatic glue dispenser,

automatic silicone dispenser
