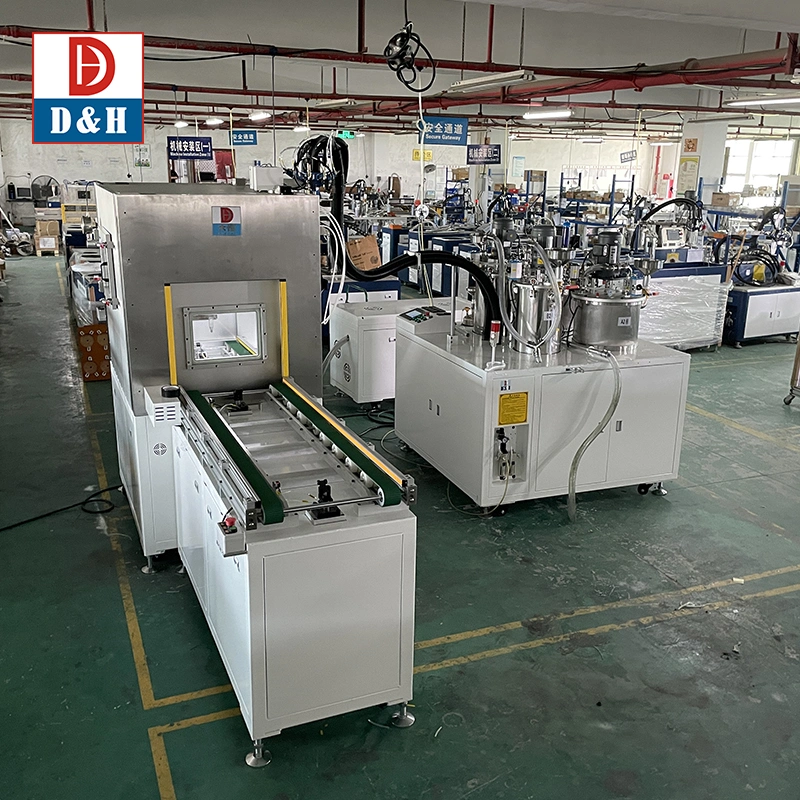

Epoxy Potting Under Vacuum Chamber Machine AB Fluids PU Silicones Dispensing Inline 2K Smart Dosing System

Products

Vacuum Potting Casting Machine

High Precision Dispensing Valve

PU Dispensing Machine

Ms. Yolanda Zhou

dh02@dahengkongjiao.com

86--18926136909

8613535032180

Contact Now

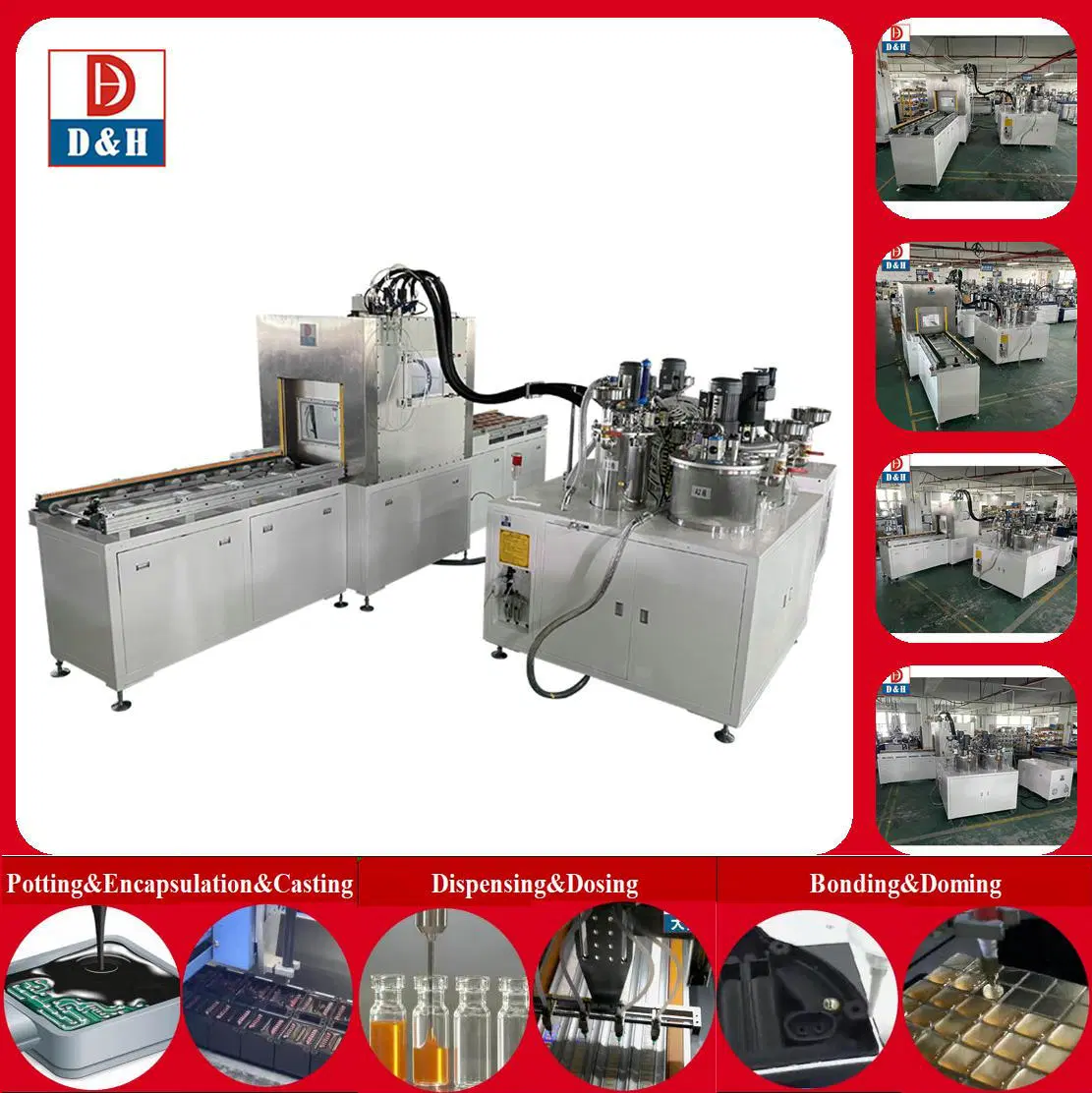

Epoxy Potting Under Vacuum Chamber Machine AB Fluids PU Silicones Dispensing Inline 2K Smart Dosing System

MOQ:	1 Unit
Price:	USD 48000
Standard Packaging:	155X135X170 CM
Delivery Period:	5-8 Working days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity:	5-8 Working days

Details Information

Product Description

Detail Information

Place of Origin

MADE IN CHINA

Brand Name

Certification

CE,ISO,ROHS

Model Number

VGB-650B

Key Words:

Epoxy Potting Under Vacuum Chamber Machine AB Fluids PU Silicones Dispensing Distribution Potting Smart Dosing System

Suitable Materials:

PU,EPOXIES ,SILICONES ...

PU,EPOXIES ,SILICONES ...:

550x400x100mm

Functions:

Re-filling ,vacuum , Heat , Stirring ,self-cleaning

Mixing Mode:

Static /Dynamic Mixing

AB Tanks:

10L,25L,40L Optional

Packing Materials:

Packing Materials

Dimension:

1246x996x1282mm

Highlight:

Silicones Vacuum Chamber Machine

AB Fluids Vacuum Chamber Machine

2K Smart Dosing System

Product Description

Epoxy Potting Under Vacuum Chamber Machine AB Fluids PU Silicones dispensing Inline 2K Smart Dosing System

Introducing our Epoxy Potting Under Vacuum Chamber Machine — a cutting-edge solution for precise AB Fluids, PU, and Silicone Dispensing. Our 2K Smart Dosing System ensures accurate epoxy mixing and fluid control, optimizing metering, dispensing, and blending in one seamless operation. Ideal for industries like electronics and manufacturing, our fluid control technology delivers consistent results for every application.

With robust features like two-part pump mix systems, inline epoxy dispensing, and advanced mixing quality, we provide the best in fluids automation and fluid equipment development. Our machines are designed to meet the highest standards in glue mixing and metering systems, ensuring precise control in every step.

Explore top-tier fluid mixing equipment and dispensers for all your industrial needs. Join the future of fluid automation!

#EpoxyPotting #ABFluids #PUDispensing #SiliconeDispensing #FluidControlCompany #FluidMixingEquipment #FluidMachine #DispensingMachine #MeteringDispenser #EpoxyMixingSystem #FluidsAutomation #FluidControl #GlueMixingTech #SiliconeMixingQuality

Epoxy Potting Vacuum Chamber Machine 2K Dosing Compounds Dispensing Filling Machine

Electronics are increasingly present in our lives, these technologies all use a wide array of components -sensors, actuators,central processing units (CPUs), printed circuit boards (PCB), electronics componnets , Capacitor, power supply, transformer,ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....etc. - that need to be protected against environmental factors such as dust and moisture, as well as fluids and heat and
fire exposure.

Advanced Solutions in Dispensing and Potting Equipment

In today's rapidly evolving manufacturing landscape, precision, efficiency, and reliability are paramount. As industries demand higher standards and more complex applications, the need for advanced dispensing and potting equipment becomes increasingly crucial. Enterprising companies are turning to cutting-edge solutions to meet these demands, leveraging technologies such as CCD vision systems and dual-component dispensing machines to stay ahead of the curve.

CCD Vision Dispensing Systems: Revolutionizing accuracy and quality control, CCD vision dispensing systems integrate advanced imaging technology with precision dispensing capabilities. By providing real-time visual feedback and ensuring precise placement of materials, these systems optimize production processes and minimize waste.

AB Glue Machines: Versatile and robust, AB glue machines are the workhorses of adhesive application. Whether it's two-part silicone, polyurethane, or epoxy, these machines excel in metering, mixing, and dispensing a wide range of materials. With customizable configurations and automated features, they streamline production workflows and enhance product consistency.

2K Potting Technology: For applications requiring superior encapsulation and protection, 2K potting technology delivers unmatched performance. By combining two components precisely at the point of dispensing, this technology ensures thorough mixing and homogeneity, resulting in durable and reliable potting solutions.

Automated Dispensing Equipment: Embracing the era of Industry 4.0, automated dispensing equipment integrates seamlessly into smart manufacturing environments. Equipped with high-precision dispensing valves and robotic arms, these systems offer unparalleled efficiency and repeatability, optimizing production throughput and reducing labor costs.

Dynamic and Static Mixing Systems: Catering to diverse application requirements, dynamic and static mixing systems provide flexible solutions for a variety of materials. Whether it's high-viscosity adhesives or low-viscosity resins, these systems deliver precise mixing ratios and consistent results, ensuring optimal performance in every application.

Metering, Pouring, and Filling Equipment: From meter-mix dispensing machines to resin casting systems, the versatility of modern dispensing equipment knows no bounds. Whether it's sealing, filling, or casting, these machines offer precise control over material flow and dispensing parameters, empowering manufacturers to tackle even the most challenging applications with confidence. In conclusion, the landscape of dispensing and potting equipment is evolving rapidly, driven by advancements in technology and the ever-increasing demands of modern manufacturing. By embracing innovative solutions such as CCD vision systems, automated dispensing equipment, and dynamic mixing systems, companies can unlock new levels of efficiency, precision, and reliability in their production processes. As industries continue to push the boundaries of innovation, the role of advanced dispensing equipment will only grow in importance, shaping the future of manufacturing for years to come.

Introduction :

1 Working Area: controlled by PLC module and MCGS touch screen.
2 High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3 Core technology pumps are designed specially for different materials from low to high viscosities
4 Mix glue A & B more evenly; no more or no less for agent B.

Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Epoxy Potting Under Vacuum Chamber Machine AB Fluids PU Silicones Dispensing Inline 2K Smart Dosing System 2

Tank system technology:

Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6.Tank with heating panel which can preheat materials to assure good flowability.
6 Tank with artificial feeding mouth that can be added glue appropriately by hand .
7 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

1 Two cylinder plunger pumps work by durable motors.
2 The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3 Also Suitable for high viscosity glue: 50cps~35000cps.
4 Suitable for big flow dispensing or slight flow dispensing.
5 Suitable for frequent start and stop dispensing.
6 Anti-wear, Anti-corrosion, super long life time.

Valve technology

1.Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.

Teach data

Glue ratio	1 :1 ---10:1
Ratio acurracy	±2%
Glue-out speed	0.5g/s --24g/s(Per single pump)
Glue-out accuracy	±2%
Program memory	99pcs
Glue viscosity	50cps~35000cps(Reference data)
Opearation Mode	Manual mode /Automatic mode
Ratio Control	PLC/ Double plunger pump (Can change different type of metering pumps)
Flow Control	Digital input
Parameter display	Pointer / digital display
Automatic control system	Touch screen / button switch/ third party signal
Mixing Method	Static mixing / Automatic cleaning
Storage Tank	Stainless steel A and B(10L,25L ,40L optional)
	Stainless steel cleaning barrel C(5L)
	Vacuum degas(-0.1MPa)
	Liquid level sensor(Low liquid level/high liquid level)
	A/B Tank stirring
	AB glue constant temperature heating(available)
	Glue filter
Power	220V/50Hz/5000W
Outer dimension	Glue Potting Machine:995mm×600mm×1500mm
Frame Materials	Cold rolled steel/industrial aluminum/stainless steel/sheet metal

Parameters

	Parameter	Category	Specification
Mixing ratio	1:1-10:1	Speed	0-250mm/s(displacement speed)
Working area	Inner area:450x400x80mm,Dimension: 900x790x760mm	Speed	0-250mm/s(displacement speed)
Program memory	99 pcs	Precision	±0.1mm (accuracy of displacement)±2%(mixing accuracy)
Input air pressure	0.3MPa-0.8MPa	Precision	±0.1mm (accuracy of displacement)±2%(mixing accuracy)
Viscosity range	50cps~30000cps	Working path	Dot, line , arc , circle
Operation mode	JOG/AUTO	Working path	Dot, line , arc , circle
Control system	PLC	Auto control system	Industrial touch screen program with programming modification, storage and so on
Flow control	Digital input	Auto control system
Programming method	Teaching programming	Out-glue control system	AB glue suck-back valve /vacuum suck back skill.
Mixing mode	Dynamic	Out-glue control system	AB glue suck-back valve /vacuum suck back skill.
Power	380V/50Hz/1200W	Storage system	Stainless steel tanks A Tank: 40L & B Tank: 25L(10L,25L ,40L optional)
Vacuum degree	-0.1MPa	Vacuum time	90S(as per different requirement)

PLC controlling System

1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .

Application:

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....

2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....

3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Epoxy Potting Under Vacuum Chamber Machine AB Fluids PU Silicones Dispensing Inline 2K Smart Dosing System 6

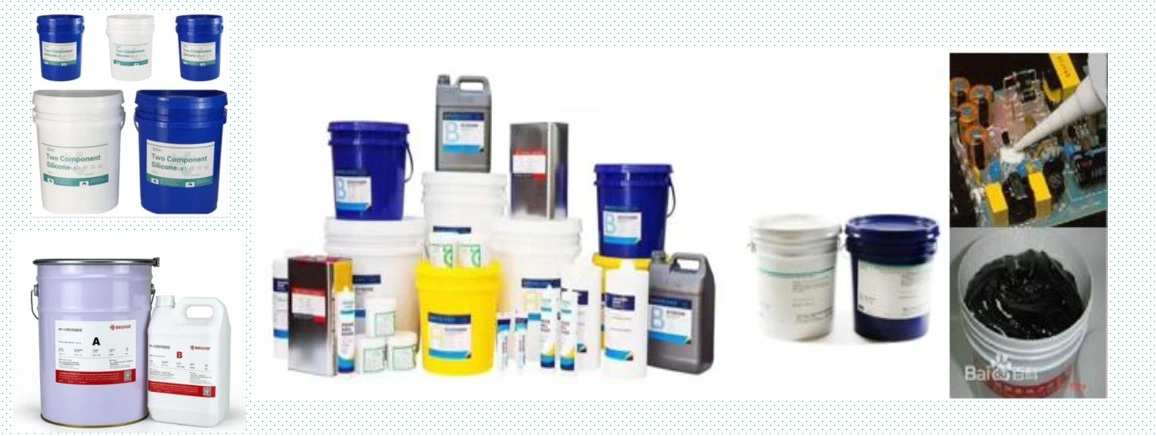

Applicable materials

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .

Service Term

1.Staff training

Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2.Maintenance Service

2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.

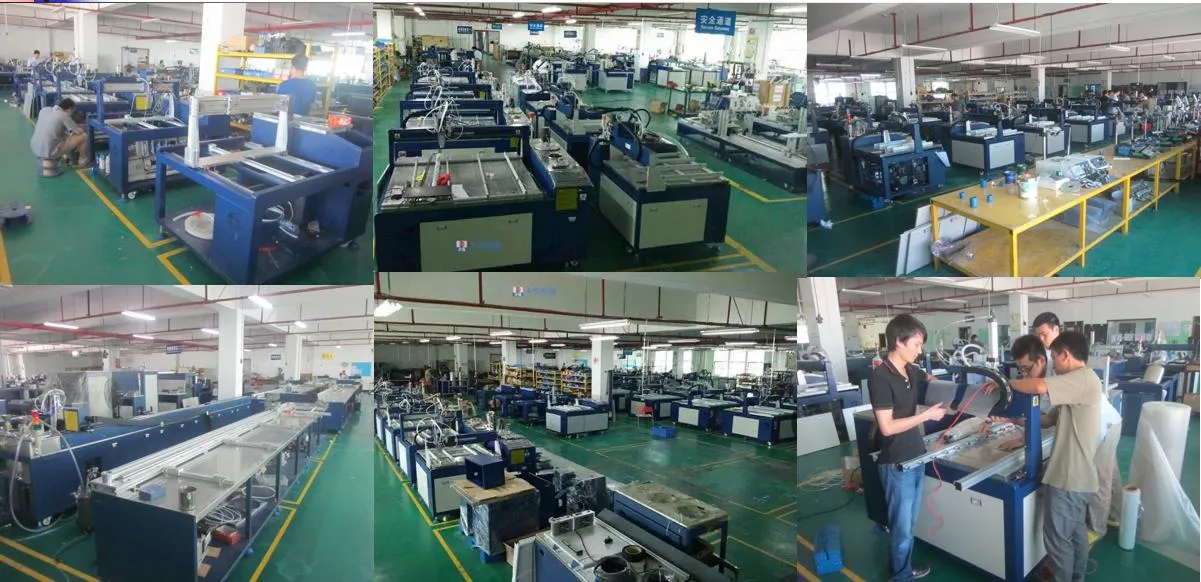

Workshop Cornner of factory Epoxy Potting Vacuum Chamber Machine 2K Dosing Compounds Dispensing Filling Machine

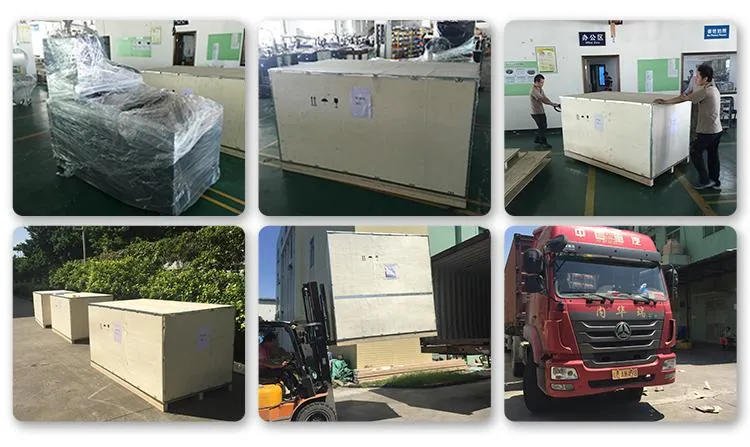

Shipping&delivery

Sucessful cases:

Epoxy Potting Vacuum Chamber Machine 2K Dosing Compounds Dispensing Filling Machine
