Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser
  • name
  • name
  • name
  • name
  • name
  • name

Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser

MOQ: 1 Unit
Price: USD 19000
Standard Packaging: 155X135X170 CM
Delivery Period: 5-8 Working days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 5-8 Working days
Details Information
Product Description
Detail Information
Place of Origin
MADE IN CHINA
Brand Name
D&H
Certification
CE,ISO,ROHS
Model Number
PGB-700
Model NO.:
PGB-700
Installation:
Vertical
Driven Type:
Electric
Transport Package:
Poly-Wood Case
Specification:
700x700x100
Trademark:
Daheng
Origin:
China
HS Code:
8424899990
Supply Ability:
1000/Year
After-sales Service:
Provided
Precision:
High Precision
Condition:
New
Certification:
CCC, FDA, RoHS, ISO, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Samples:
1 Piece(Min.Order) | Request
Customization:
Available | Customized Request
Highlight:

Automatic Glue Sealing Machine

,

Industrial Glue Sealing Machine

,

High Precision industrial dispenser machine

Product Description
Tech Data
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
700*700*100mm
Displacement speed
250mm/s(speed)
Out-glue speed
1-12g/s per single pump
Accuracy
±2%(output volume)±2%(mixing)
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99pcs-999pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W without heating
Air source
0.5-0.8Mpa
Viscosity range
50-20000cps
Outer dimension
1500L*1200W*1600H mm
A tank
10L 25L 40L stainless tank(optional)
B tank
10L 25L 40L stainless tank(optional)
Others
AB tank ,A pump,AB pipeline heating function


we're dedicated to empowering manufacturers with cutting-edge dispensing solutions tailored to their unique needs. Our CCD Vision Dispensing System and AB Glue Machine represent the culmination of years of research and development, designed to elevate your production processes to new heights.



  Experience unmatched precision and consistency across a variety of materials, from 2-Part Silicone to Polyurethane, Epoxy, and Potting Compounds. With our AB Resins Compound Dosing and Dispensing Potting System, you can bid farewell to uncertainties and hello to efficiency, ensuring consistent results with every application.



Our commitment to customer satisfaction is evident in our range of solutions, including Two-Component and Dual-Component Dispensing Machines, Glue Dropping and Filling Machines, and more. These solutions are crafted to seamlessly integrate into your workflow, maximizing productivity and minimizing downtime.



Automation lies at the heart of our dispensing solutions, with features such as High-Precision Dispensing Valve Units in our Dispensing Robot and Automated Dispensing Equipment. These systems are designed to streamline your operations, allowing you to focus on what matters most - delivering quality products to your customers.



Whether you're working with 2K Dispensers, AB Epoxy Resins, or Polyurethane Silicones, our solutions are tailored to your specific requirements. Trust in our expertise across Metering, Mixing, Pouring, Potting, and Filling processes to unlock your production potential



Join us in shaping the future of manufacturing with our Dynamic and Static Mixing Systems, offering versatility and reliability across a wide range of applications. Let us partner with you on your journey to success.

Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 0
* Applications :
Industry: Led screen , led display module , led panel , led sign board ,led ad , capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast,PCB boards, water pumps ,power supply and other electronic products and product or parts where want encapsulation &potting demanded.



Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 1

Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 2

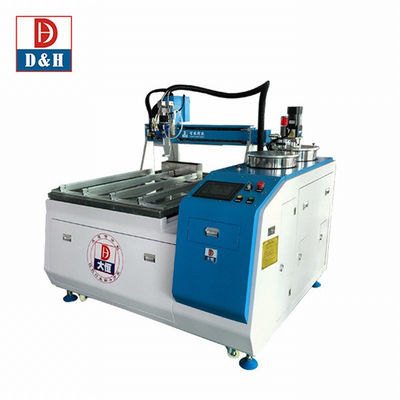

General description of the machine

PGB-700 ab dosing dispensing machine precisely metering, mixing and dispensing two-component medium to low-viscosity materials for potting, dispensing ,sealing, casting ,encapsulation and filling.
For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
The system is composed of AB tanks, metering pumps and motor, mixing pipe, dual valve, dynamic motor for dynamic stirring and 3-axis robotic platform.
Two kinds of component materials are separately before they mix in mixing tube to avoid glue cure in system. Dispensing valve is with suck-back function to keep thin fluid from dripping.
Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 3

Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 4
* Applied materials :
Epoxies , Urethane(PU) or Silicone .
Two components glue, AB glue, AB part glue, silicone, epoxy resin, polyurethane;
All kinds of two-component mixed glues with required ratio, such as epoxy resin AB glue, polyurethane, silica gel, PU glue,flocking glue, paint, etc.
Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 5
* Company profile :
Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 6
Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 7
*Certificates & Core technology
Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 8Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 9

* Global activities
Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 10Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 11

*Packing and delivery
Automatic Glue Sealing Machine Epoxy Machine Industrial Dispenser Machine Automatic Resin Dispenser 12
